N A M E P L A T E       D A T A
Manufacturer:      FALK Our ID No.      007450
Model:      Ultamite 07UCBN2A32.A1C
Ratio:      32
MO# or S/N      47404611199 Alt. S/N
IP Speed      1750 HP rating      4.90 Cat. Rating
OP Speed:       SF / SC
Date      12/99 Oil Capacity
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating       Lb-Inches Shaft Diameters High Speed:  0.8750
Low Speed:  1.650
Weight       Lbs Approx. Assembly
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
32 :1

109.38 RPM
9.81 HP
1430 RPM
75.00 RPM
6.73 HP
1170 RPM
54.69 RPM
4.90 HP
870 RPM
44.69 RPM
4.06 HP
720 RPM
36.56 RPM
3.25 HP
580 RPM
RPM 27.19
2.45 HP
Notes:
Condition:


Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

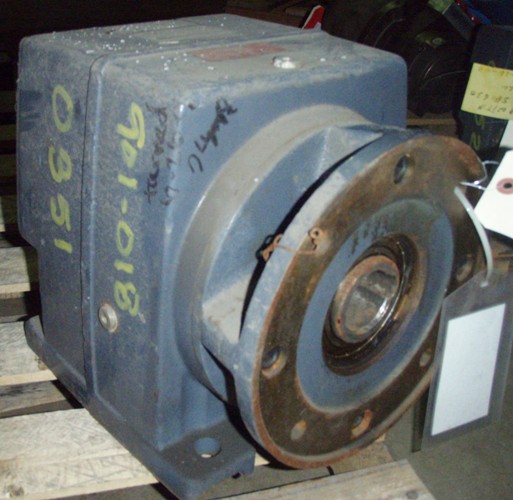

Click on images for larger view.
