N A M E P L A T E       D A T A
Manufacturer:       FALK Our ID No.       007455
Model:       3CB3-12A1 Ratio:       9.15
MO# or S/N       6-2515413 Alt. S/N
IP Speed       HP rating       Cat. Rating
OP Speed:       SF / SC
Date       5/62 Oil Capacity
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating       6550 Lb-Inches Shaft Diameters High Speed:   1.375"
Low Speed:   3.00"
Weight       320 Lbs Approx. Assembly
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
9.15:1

190 RPM
19.6 HP
1430 RPM
155 RPM
16.0 HP
1170 RPM
125 RPM
13.7 HP
870 RPM
95 RPM
10.4 HP
720 RPM
77 RPM
8.60 HP
Notes:
Condition:
REBUILT: 8/98

Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

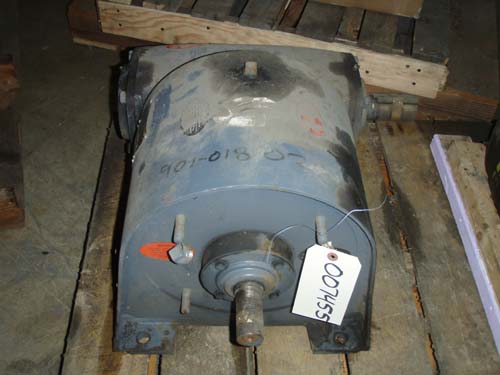

Click on images for larger view.
