- Speed Reducer Data Sheet -
N A M E P L A T E       D A T A
Manufacturer:       HANSEN TRANSMISSIONS Our ID No.      007486
Model:      QHRE3-CRN-22.4 Ratio:      22.4
MO# or S/N      K00-15735-F1 Alt. S/N
IP Speed      1750 HP rating      125 Cat. Rating       353
OP Speed:      77.8 SF / SC       2.8
Date       Oil Capacity
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating       285,000 Lb-Inches Shaft Diameters High Speed:  2.000
Low Speed:  5.250
Weight      2,000 Lbs Approx. Assembly      CR
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings		 Thermal ratings
with 1 cooling fan
1750 RPM
22.47:1

78 RPM
353 HP
310 HP
1430 RPM
63 RPM
300 HP
300 HP
1170 RPM
52 RPM
245 HP
260 HP
870 RPM
39 RPM
190 HP
220 HP
Notes:
Condition: NEW SURPLUS


Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

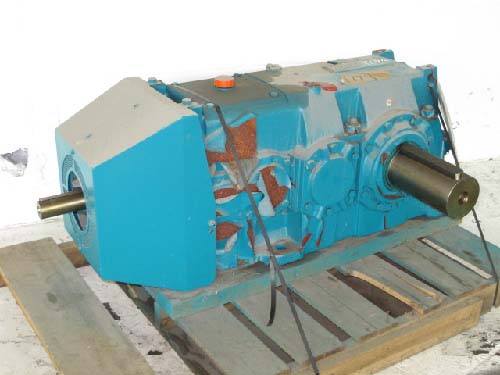

Click on images for larger view.
