Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -
HOME
N A M E P L A T E       D A T A
Manufacturer:       FALK Our ID No.       007489
Model:       2130Y2LR Ratio:       11.86
MO# or S/N       95-069357-01 Alt. S/N
IP Speed       1886 HP rating       300 Cat. Rating
OP Speed:       159 SF / SC       2.50
Date       Oil Capacity
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating       359,000 Lb-Inches Shaft Diameters High Speed:   3.250
Low Speed:   6.500
Weight       4,520 Lbs Approx. Assembly       1
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
11.86:1

155 RPM
840 HP
1430 RPM
125 RPM
708 HP
1170 RPM
100 RPM
596 HP
870 RPM
77 RPM
461 HP
720 RPM
62 RPM
390 HP
580 RPM
50 RPM
322 HP
Notes:
Condition: NEW SURPLUS



Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

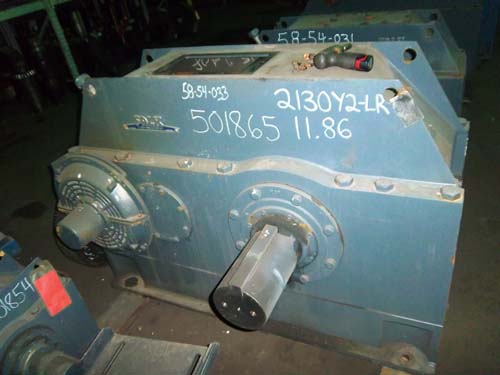

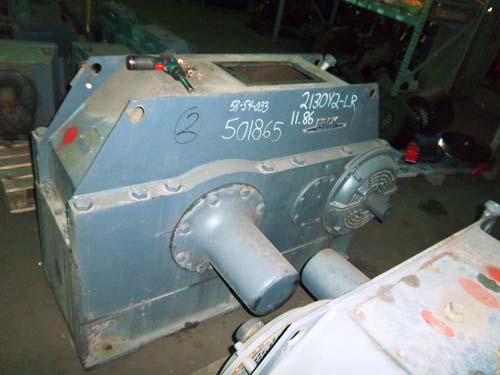

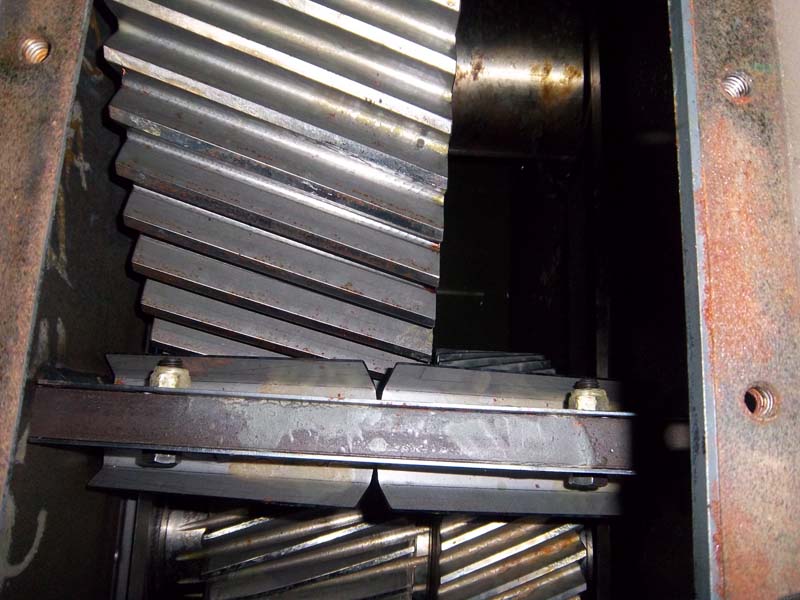

Click on images for larger view.
