N A M E P L A T E       D A T A
Manufacturer:       FALK Our ID No.       007525
Model:       4C2-02A5 Ratio:       11.12
MO# or S/N       6-837320 Alt. S/N
IP Speed       1685/152 HP rating       10 Cat. Rating
OP Speed:       162/9 SF / SC       2.25
Date       9/68 Oil Capacity
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating       9160 Lb-Inches Shaft Diameters High Speed:   1.625
Low Speed:   2.500
Weight       300 Lbs Approx. Assembly
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
11.12:1

155 RPM
22.5 HP
1430 RPM
125 RPM
18.9 HP
1170 RPM
100 RPM
15.5 HP
870 RPM
77 RPM
11.7 HP
720 RPM
62 RPM
9.78 HP
Notes:
Condition: REBUILT



Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

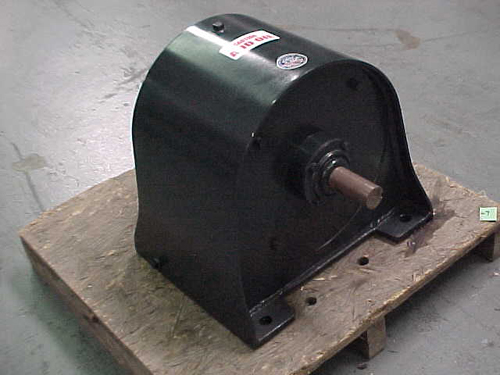

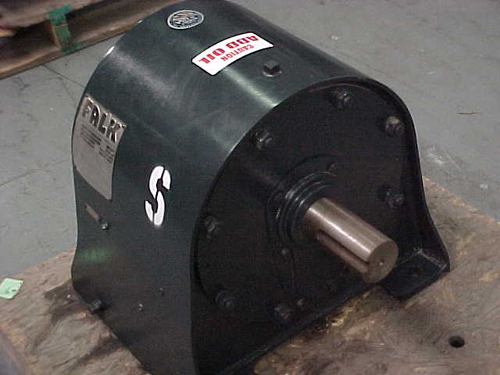

Click on images for larger view.
