- Speed Reducer Data Sheet -
HOME
N A M E P L A T E       D A T A
Manufacturer:       FALK Our ID No.       007526
Model:       1.51-5EZ4-06A3 Ratio:       304.1
MO# or S/N       7-438825 Alt. S/N
IP Speed       HP rating       1.5 Cat. Rating
OP Speed:       6 SF / SC       1
Date       12/74 Oil Capacity
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating       17,400 Lb-Inches Shaft Diameters High Speed:   1.000
Low Speed:   2.875
Weight       560 Lbs Approx. Assembly
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
304.1:1

6.0 RPM
1.62 HP
1430 RPM
5.0 RPM
1.32 HP
1170 RPM
4.0 RPM
1.09 HP
870 RPM
3.0 RPM
.810 HP
720 RPM
2.4 RPM
.668 HP
Notes:
Condition: REBUILT



Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

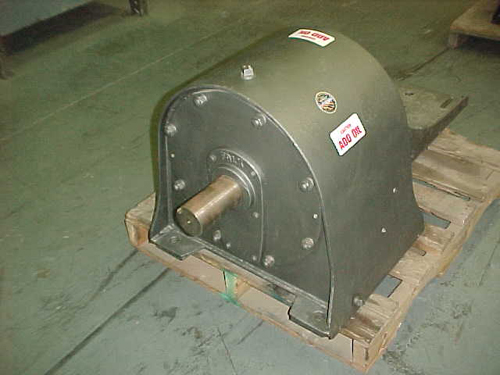

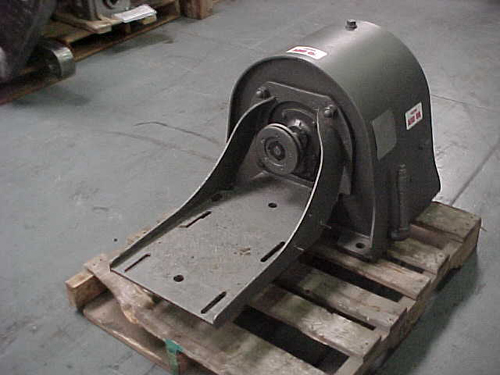

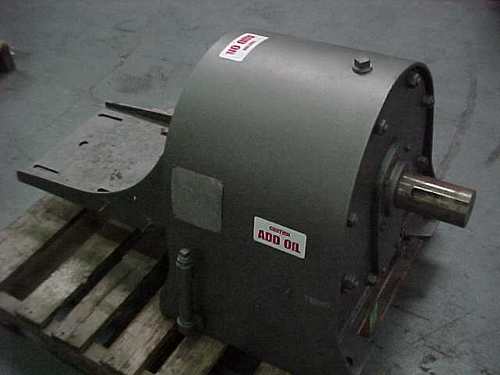

Click on images for larger view.
