- Speed Reducer Data Sheet -
HOME
N A M E P L A T E       D A T A
Manufacturer:       BROOK HANSEN Our ID No.       007541
Model:       QHRE3-F CRN Ratio:       24.574
MO# or S/N       IFPM034 Alt. S/N
IP Speed       1750 HP rating       326 Cat. Rating
OP Speed:       SF / SC
Date       Oil Capacity
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating       292,000 Lb-Inches Shaft Diameters High Speed:   50 mm (1.968)
Low Speed:   135 mm (5.317)
Weight       2000 Lbs Approx. Assembly      CR
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
24.574:1

70 RPM
330 HP
1460 RPM
58 RPM
282 HP
1160 RPM
46 RPM
229 HP
870 RPM
35 RPM
174 HP
Notes:
Condition:



Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

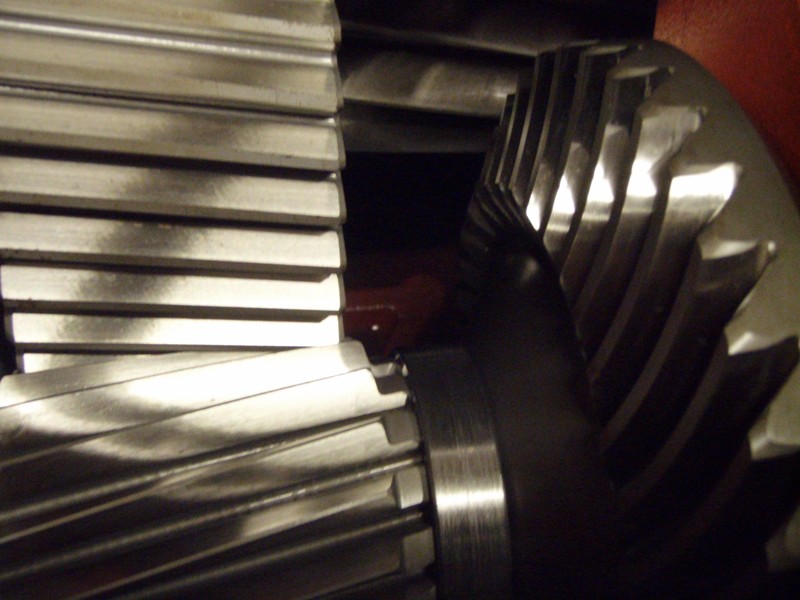

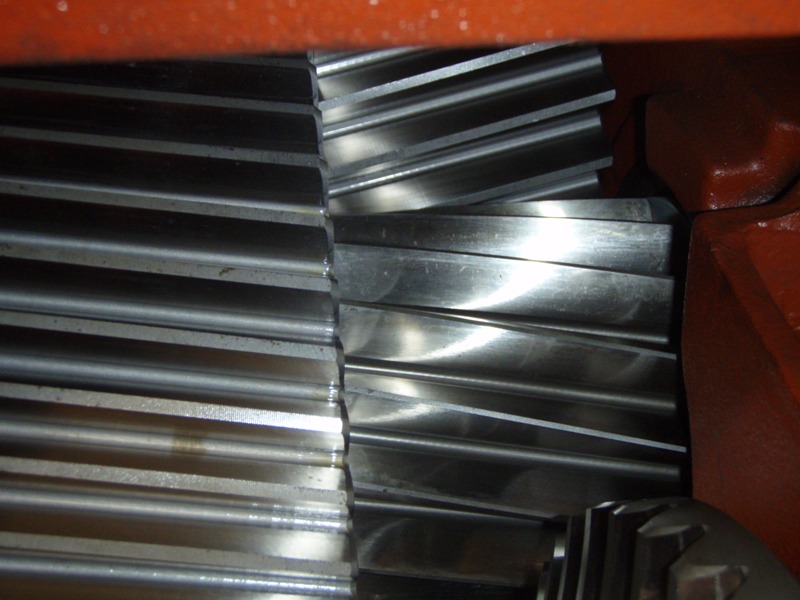

Click on images for larger view.
