- Speed Reducer Data Sheet -
HOME
N A M E P L A T E       D A T A
Manufacturer:       HANSEN Our ID No.       007543
Model:       RVK24S-BNN-8 Ratio:       8.0325
MO# or S/N       91/R04A 160833 Alt. S/N
IP Speed       1170 HP rating       2350 Cat. Rating
OP Speed:       145.6 SF / SC       2.94
Date       Oil Capacity       29 GALS
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating       1,000,000 Lb-Inches Shaft Diameters High Speed:   3.875
Low Speed:   9.00
Weight       7500 Lbs Approx. Assembly
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
8.0325:1

220 RPM
3500 HP
1160 RPM
145 RPM
2350 HP
870 RPM
110 RPM
1800 HP
Notes:
Condition: REBUILT 02/06



Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

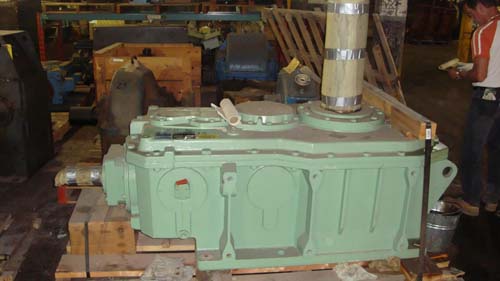

Click on images for larger view.
