Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -
HOME
N A M E P L A T E       D A T A
Manufacturer:       FALK Our ID No.       007544
Model:       2080Y1L-2.512 Ratio:       2.512
MO# or S/N       88140-04 314 Alt. S/N
IP Speed       1770 HP rating       350 Cat. Rating
OP Speed:       700 SF / SC       1.85
Date       11/88 Oil Capacity
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating       586,000 Lb-Inches Shaft Diameters High Speed:   2.50
Low Speed:   4.00
Weight       1,110 Lbs Approx. Assembly
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
2.512:1

700 RPM
648 HP
1430 RPM
575 RPM
540 HP
1170 RPM
470 RPM
450 HP
870 RPM
350 RPM
343 HP
720 RPM
290 RPM
289 HP
580 RPM
235 RPM
236 HP
Notes:
Condition: NEW SURPLUS



Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

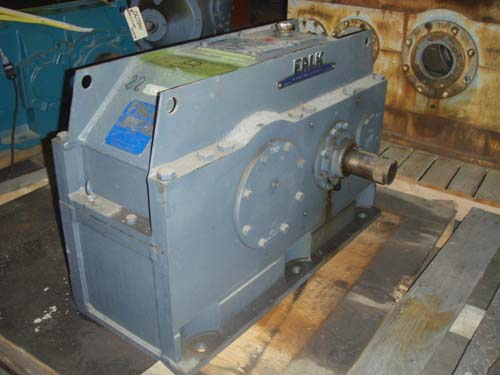

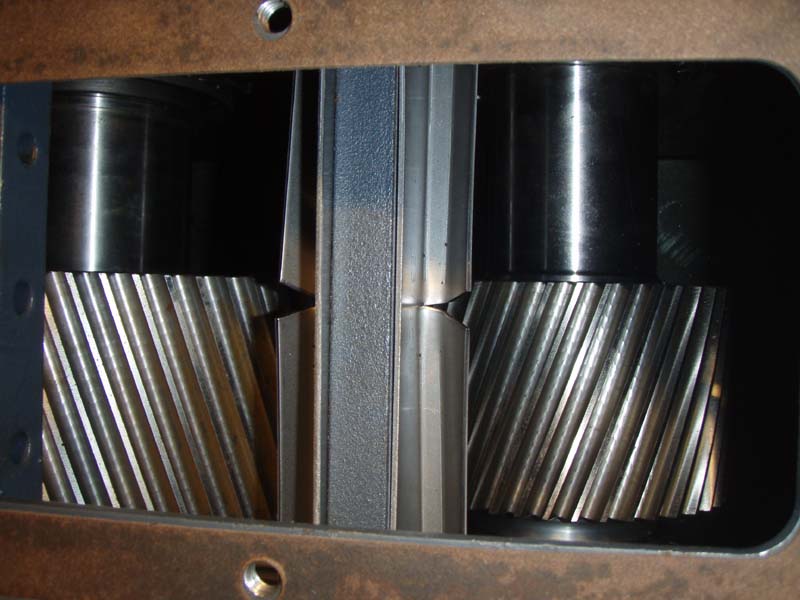

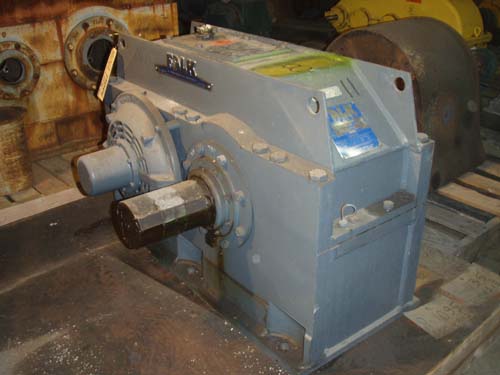

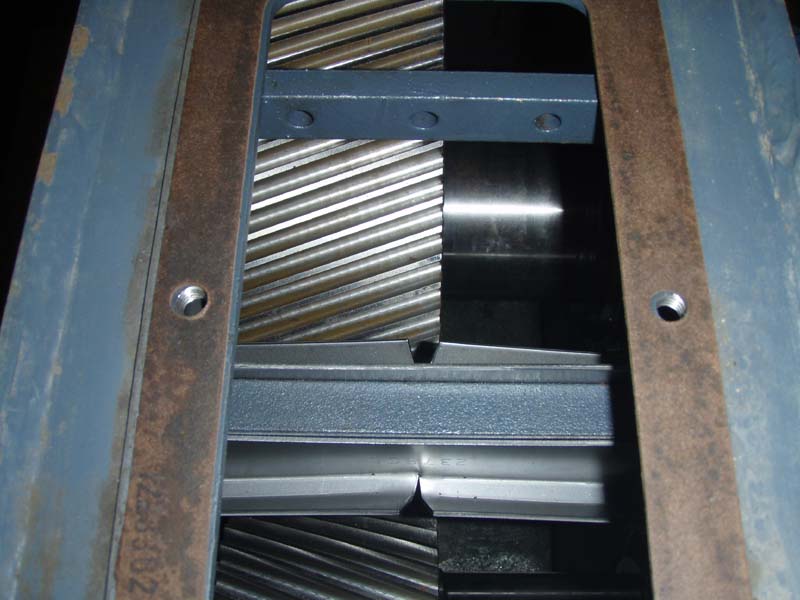

Click on images for larger view.
