Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -
HOME
N A M E P L A T E       D A T A
Manufacturer:       BROOK HANSON Our ID No.       007545
Model:       QHPC2 F2 LRN Ratio:       12.54
MO# or S/N       KHPM062 Alt. S/N
IP Speed       1500 HP rating       Cat. Rating
OP Speed:       SF / SC
Date       Oil Capacity
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating       Lb-Inches Shaft Diameters High Speed:   1.875
Low Speed:   4.125
Weight       800 Lbs Approx. Assembly
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
12.54:1

140 RPM
256 HP
1460 RPM
115 RPM
215 HP
1160 RPM
93 RPM
172 HP
870 RPM
70 RPM
129 HP
Notes:
Condition: NEW SURPLUS



Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

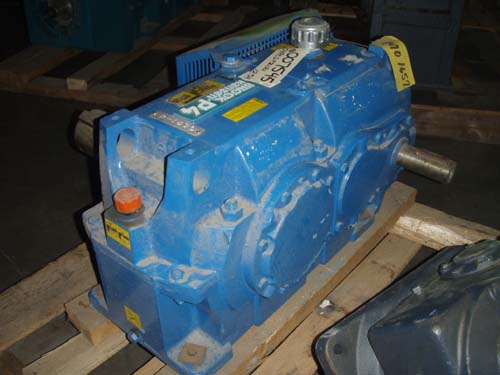

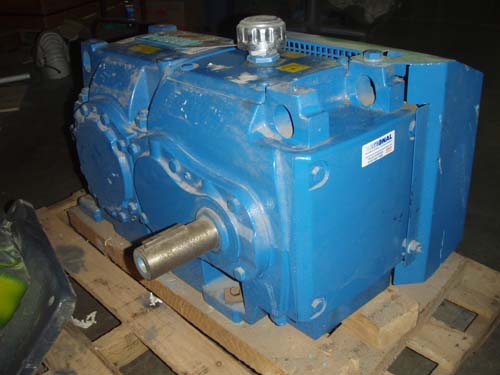

Click on images for larger view.
