- Speed Reducer Data Sheet -
HOME
N A M E P L A T E       D A T A
Manufacturer:       DODGE TXM Our ID No.       007551
Model:       TXM 300 Ratio:       16.92
MO# or S/N       014066 RN Alt. S/N
IP Speed       HP rating       Cat. Rating
OP Speed:      105 SF / SC
Date       Oil Capacity       10 QTS
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating       10,000 Lb-Inches Shaft Diameters High Speed:   1.375
Low Speed:   2.00
Weight       300 Lbs Approx. Assembly
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
16.92:1

102.4 RPM
17.1 HP
1430 RPM
84.8 RPM
15.1 HP
1170 RPM
68.5 RPM
13.3 HP
870 RPM
50.9 RPM
9.89 HP
720 RPM
42.1 RPM
8.18 HP
580 RPM
33.9 RPM
6.59 HP
Notes:
Condition: NEW SURPLUS



Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

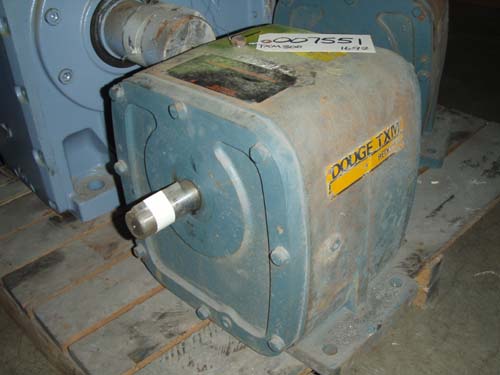

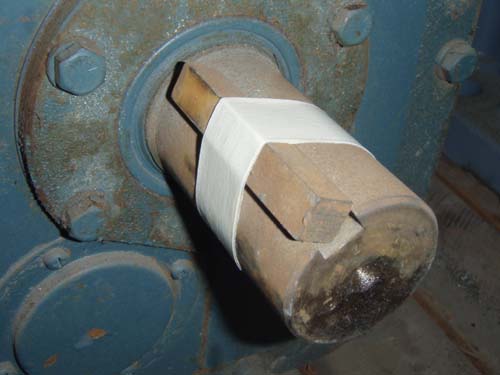

Click on images for larger view.
