- Speed Reducer Data Sheet -
HOME
N A M E P L A T E       D A T A
Manufacturer:      MORSE Our ID No.      007557
Model:      25DV R-LD Ratio:      75
MO# or S/N      F97ML0396 Alt. S/N
IP Speed      1750 HP rating      0.88 Cat. Rating
OP Speed:       SF / SC
Date       Oil Capacity
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating      1728 Lb-Inches Shaft Diameters High Speed:  0.62
Low Speed:  1.25
Weight      67 Lbs Approx. Assembly
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
75

23.33 RPM
0.88 HP
1430 RPM
1170 RPM
15.33 RPM
0.62 HP
870 RPM
11.60 RPM
0.49 HP
720 RPM
580 RPM
7.73 RPM
0.35 HP
Notes:
Condition: NEW SURPLUS



Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

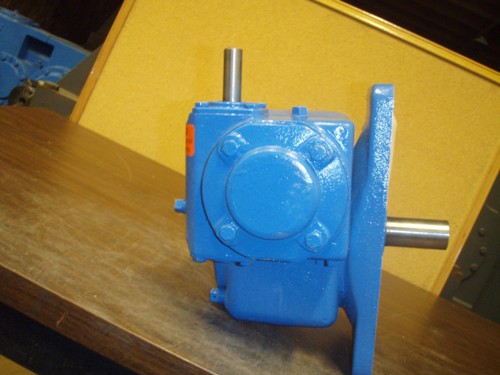

Click on images for larger view.
