Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -
HOME
N A M E P L A T E       D A T A
Manufacturer:       FALK Our ID No.       007567
Model:       2120Y1LR Ratio:       4.619
MO# or S/N       92-065854 Alt. S/N
IP Speed       1175 HP rating       500 Cat. Rating
OP Speed:       254.4 SF / SC       1.86
Date       05/92 Oil Capacity       26.5
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating       215,000 Lb-Inches Shaft Diameters High Speed:   4.000
Low Speed:   6.000
Weight       3,250 Lbs Approx. Assembly
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
4.619:1

380 RPM
1291 HP
1430 RPM
310 RPM
1097 HP
1170 RPM
255 RPM
932 HP
870 RPM
190 RPM
729 HP
720 RPM
155 RPM
622 HP
580 RPM
130 RPM
518 HP
Notes:
Condition: NEW SURPLUS



Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

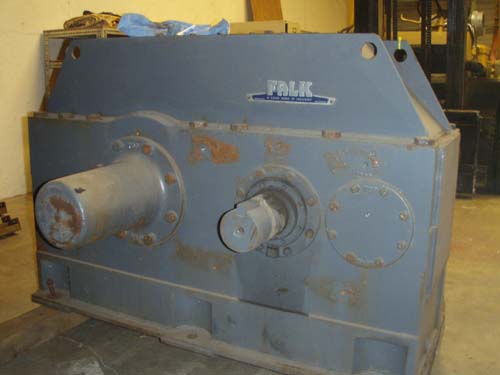

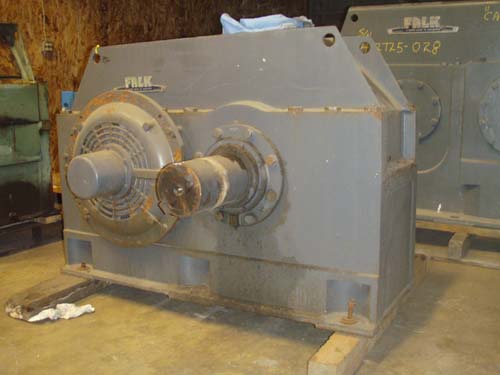

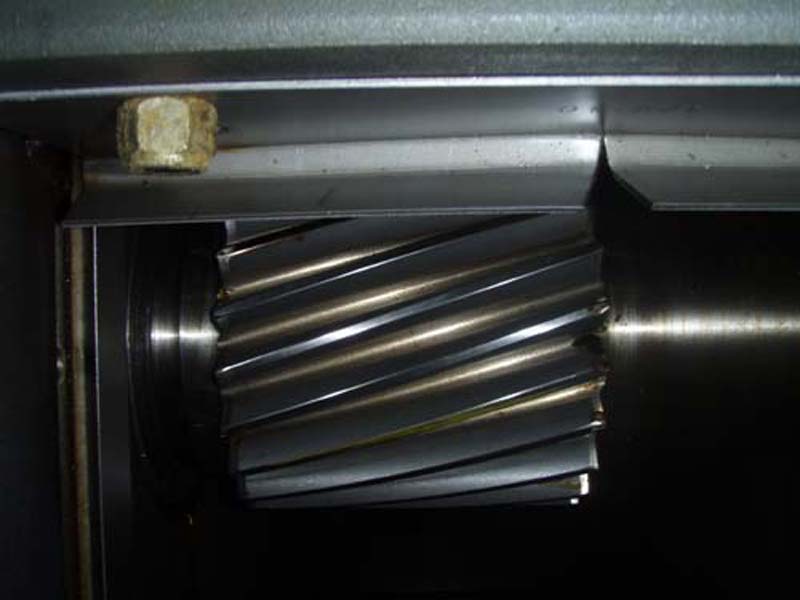

Click on images for larger view.
