Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -
HOME

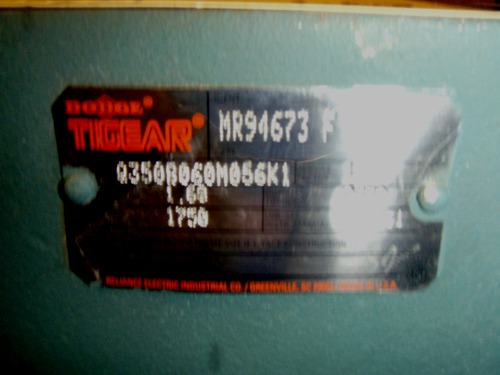

N A M E P L A T E       D A T A
Manufacturer:      DODGE TIGEAR Our ID No.      007586
Model:      Q350B060M056K1 Ratio:      60.1
MO# or S/N      MR94673FEB Alt. S/N
IP Speed      1750 HP rating      1.68 Cat. Rating
OP Speed:       SF / SC      1.00
Date       Oil Capacity
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating      2,352 Lb-Inches Shaft Diameters High Speed:  56C   0.625
Low Speed:  1.500 Solid
Weight      110 Lbs Approx. Assembly      K1
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
60.1

29 RPM
1.68 HP
1430 RPM
24 RPM
1.68 HP
1170 RPM
20 RPM
1.37 HP
870 RPM
720 RPM
580 RPM
10 RPM
1.05 HP
Notes:
Condition: NEW SURPLUS
