Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -

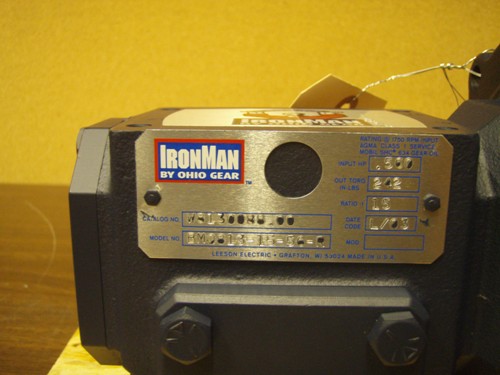

N A M E P L A T E       D A T A
Manufacturer:      IRON MAN Our ID No.      007588
Model:      BMQ813-15-56-R Ratio:      15
MO# or S/N      W813008800 Alt. S/N
IP Speed       HP rating       Cat. Rating
OP Speed:       SF / SC
Date       Oil Capacity
A D D I T I O N A L      C A T A L O G      I N F O R M A T I O N
Torque Rating      242 Shaft Diameters High Speed:  56C  0.625
Low Speed:  0.500
Weight      17 LBS Assembly      R
H.S. Shaft
RPM
Ratio Approx. L.S.
Shaft RPM
HP
Ratings
1750
15.1
 116 RPM
 0.54 HP
1170
 28 RPM
 0.40 HP
Notes:

Condition: NEW SURPLUS





Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci



Click on images for larger view.
