Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -
HOME
N A M E P L A T E       D A T A
Manufacturer:      DODGE TIGEAR Our ID No.      007590
Model:      Q262B025N056K1 Ratio:      25:1
MO# or S/N      MR94876 E LB Alt. S/N
IP Speed      1.52 HP rating       Cat. Rating
OP Speed:      1750 SF / SC       1.00
Date       Oil Capacity
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating      1,099 Lb-Inches Shaft Diameters High Speed:   56C 0.625
Low Speed:   1.125 Solid
Weight      52 Lbs Approx. Assembly      KL
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
25:1

70 RPM
1.52 HP
1430 RPM
58 RPM
1.36 HP
1170 RPM
47 RPM
1.21 HP
870 RPM
720 RPM
580 RPM
23 RPM
0.65 HP
Notes:
Condition: NEW SURPLUS



Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

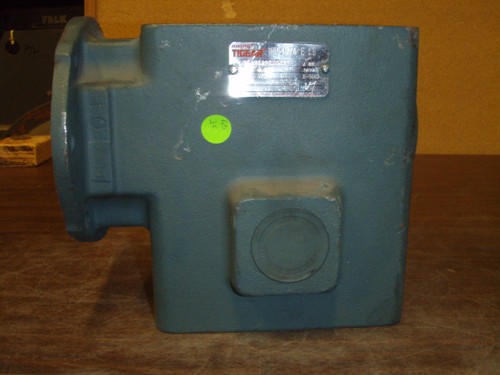

Click on images for larger view.
