Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -
HOME
N A M E P L A T E       D A T A
Manufacturer:      DODGE TIGEAR Our ID No.      007591
Model:      C262S50N140 Ratio:      50:1
MO# or S/N      5965082017JC TNMA0001 Alt. S/N
IP Speed      1750 HP rating       Cat. Rating
OP Speed:      3.63 SF / SC      1.00
Date       Oil Capacity
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating      5,771 Lb-Inches Shaft Diameters High Speed:  0.875  Solid
Low Speed:  140C   1.937
Weight       Lbs Approx. Assembly
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
50:1

35 RPM
3.63 HP
1430 RPM
29 RPM
3.11 HP
1170 RPM
23 RPM
2.57 HP
870 RPM
17 RPM
2.00 HP
720 RPM
580 RPM
Notes:
Condition: NEW SURPLUS



Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

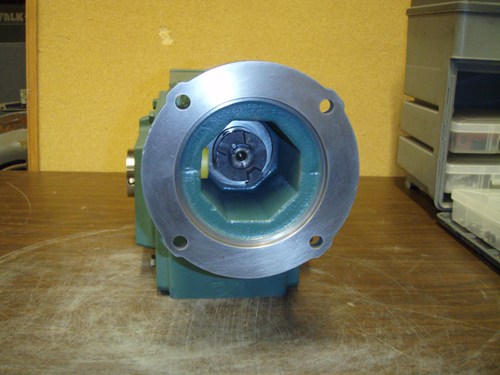

Click on images for larger view.
