Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -
N A M E P L A T E       D A T A
Manufacturer:      FALK Our ID No.      007595
Model:      2130Y2-LS Ratio:      25:40
MO# or S/N      91-065224 Alt. S/N
IP Speed      1785 HP rating       Cat. Rating      300
OP Speed:      70.3 SF / SC      1.30
Date      12/92 Oil Capacity       18.0
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating      296,000 Lb-Inches Shaft Diameters High Speed:  3.250   Solid
Low Speed:  6.500   Solid
Weight      4,630 Lbs Approx. Assembly      19
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings		 Thermal
Ratings
W/O Cooling
1750 RPM
25:40

68 RPM
324 HP
238 HP
1430 RPM
56 RPM
268 HP
HP
1170 RPM
45 RPM
227 HP
HP
870 RPM
171 RPM
34 HP
HP
720 RPM
28 RPM
142 HP
HP
580 RPM
22 RPM
117 HP
HP
Notes:
Condition: USED



Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

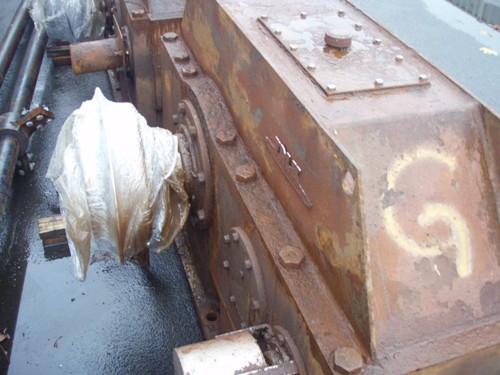

Click on images for larger view.
