Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -
N A M E P L A T E       D A T A
Manufacturer:      FALK Our ID No.      007596
Model:      2120Y2-LS Ratio:      26:15
MO# or S/N      91-065222 Alt. S/N
IP Speed      1785 HP rating       Cat. Rating      200
OP Speed:      68.3 SF / SC      1.46
Date      12/92 Oil Capacity
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating      228,000 Lb-Inches Shaft Diameters High Speed:  3.000  Solid
Low Speed:  6.000  Solid
Weight      3,390 Lbs Approx. Assembly      19
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings		 Thermal
Ratings
W/O Cooling
1750 RPM
26:1

68 RPM
242 HP
202 HP
1430 RPM
56 RPM
204 HP
HP
1170 RPM
45 RPM
173 HP
HP
870 RPM
34 RPM
135 HP
HP
720 RPM
28 RPM
105 HP
HP
580 RPM
22 RPM
88.0 HP
HP
Notes:
Condition: USED

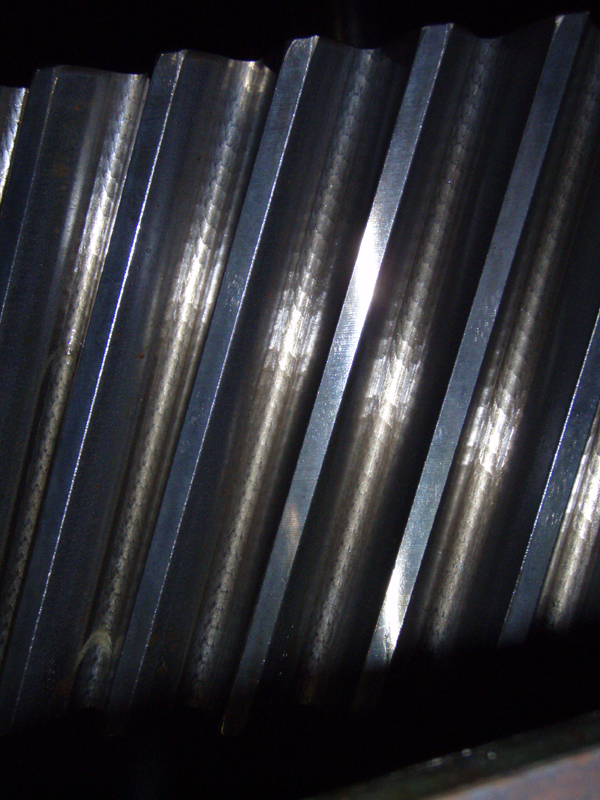

Gears: Excellent
