- Speed Reducer Data Sheet -
HOME

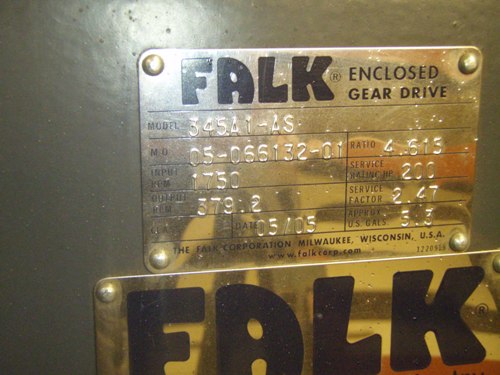

N A M E P L A T E       D A T A
Manufacturer:      FALK Our ID No.      007598
Model:      345A1-AS Ratio:      4.615
MO# or S/N      05-066132-01 Alt. S/N
IP Speed      1750 HP rating      200 Cat. Rating
OP Speed:      379.2 SF / SC      2.47
Date      05/05 Oil Capacity      5.3
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating      70,300 Lb-Inches Shaft Diameters High Speed:   2.375   Solid
Low Speed:   3.500   Solid
Weight      780 Lbs Approx. Assembly      19
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
4.615

380 RPM
423 HP
1430 RPM
310 RPM
368 HP
1170 RPM
255 RPM
319 HP
870 RPM
190 RPM
260 HP
720 RPM
155 RPM
227 HP
580 RPM
185 RPM
130 HP
Notes:
Condition: UNUSED SURPLUS
