Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -
HOME
N A M E P L A T E       D A T A
Manufacturer:       FALK Our ID No.       007611
Model:       2150YB2A Ratio:       12.57
MO# or S/N       7-467709-01-2 Alt. S/N
IP Speed       1140 HP rating       513 BHP Cat. Rating
OP Speed:       90.6 SF / SC       1.38
Date       Oil Capacity       36
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating       473,000 Lb-Inches Shaft Diameters High Speed:   4.000
Low Speed:   7.750
Weight       9060 Lbs Approx. Assembly
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
12.57:1

139 RPM
953 HP
1430 RPM
113 RPM
783 HP
1170 RPM
93 RPM
669 HP
870 RPM
69 RPM
524 HP
720 RPM
57 RPM
437 HP
580 RPM
46 RPM
359 HP
Notes:
Condition: USED



Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

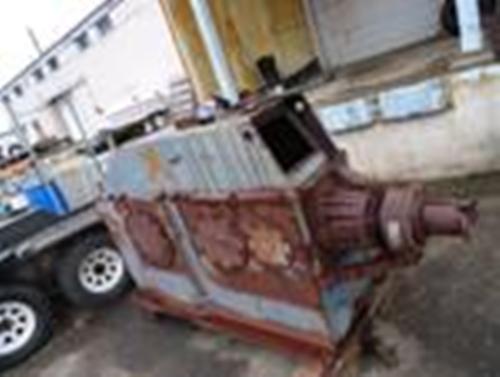

Click on images for larger view.
