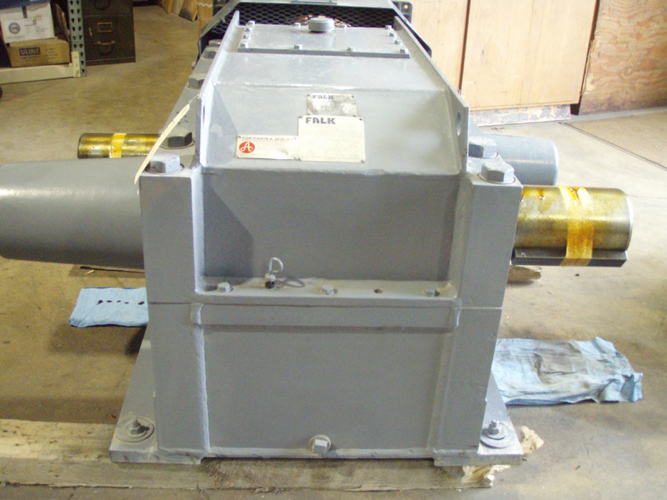

| Nameplate Data | |||||
|---|---|---|---|---|---|
| Manufacturer: | FALK | Our ID No. | 007639 | ||
| Model: | 445A1-CS | Ratio: | 1.514 | ||
| MO# or S/N | 00-066863 | Alt. S/N | |||
| IP Speed: | 1750 | HP rating: | 1750 | Cat. Rating: | |
| OP Speed: | 1155.8 | SF / SC | 2.9 | ||
| Date: | Oil Capacity: | ||||
| Additional Catalog Information | |||||
|---|---|---|---|---|---|
| Torque Rating | 333,000 Lb-Inches | High Speed Shaft Dia. | 4.500 | ||
| Weight | 3,680 Lbs Approx. | Low Speed Shaft Dia. | 6.500 | ||
| Assembly | 2 | Centers | 14.000" | Shaft Height | 14.50" |
| H.S. Shaft RPM |
Ratio | Approx. L.S. Shaft RPM |
Mechanical HP Ratings |

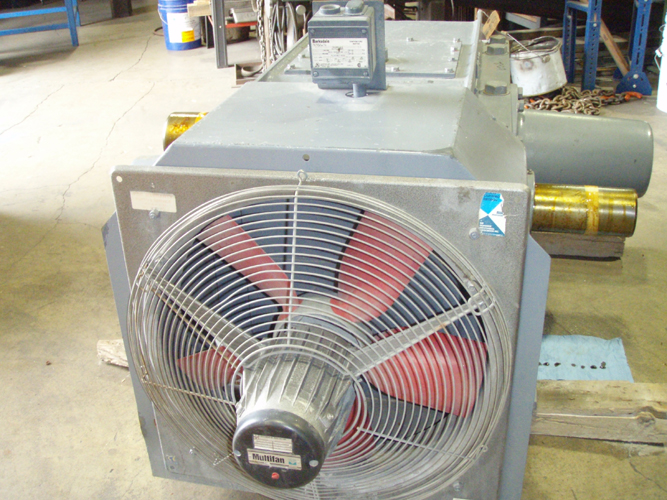

Thermal ratings with electric cooling fan |
|---|---|---|---|---|
| 1750 RPM | 1.514:1 | 1155 RPM | 5075 HP | 2293 HP |
| 1430 RPM | 944 RPM | 4404 HP | 2254 HP | |
| 1170 RPM | 772 RPM | 3826 HP | 2188 HP | |
| 870 RPM | 574 RPM | 3110 HP | 2082 HP | |
| 720 RPM | 475 RPM | 2704 HP | 2129 HP | |
| 580 RPM | 383 RPM | 2178 HP | 2129 HP |
| Condition |
|---|
|

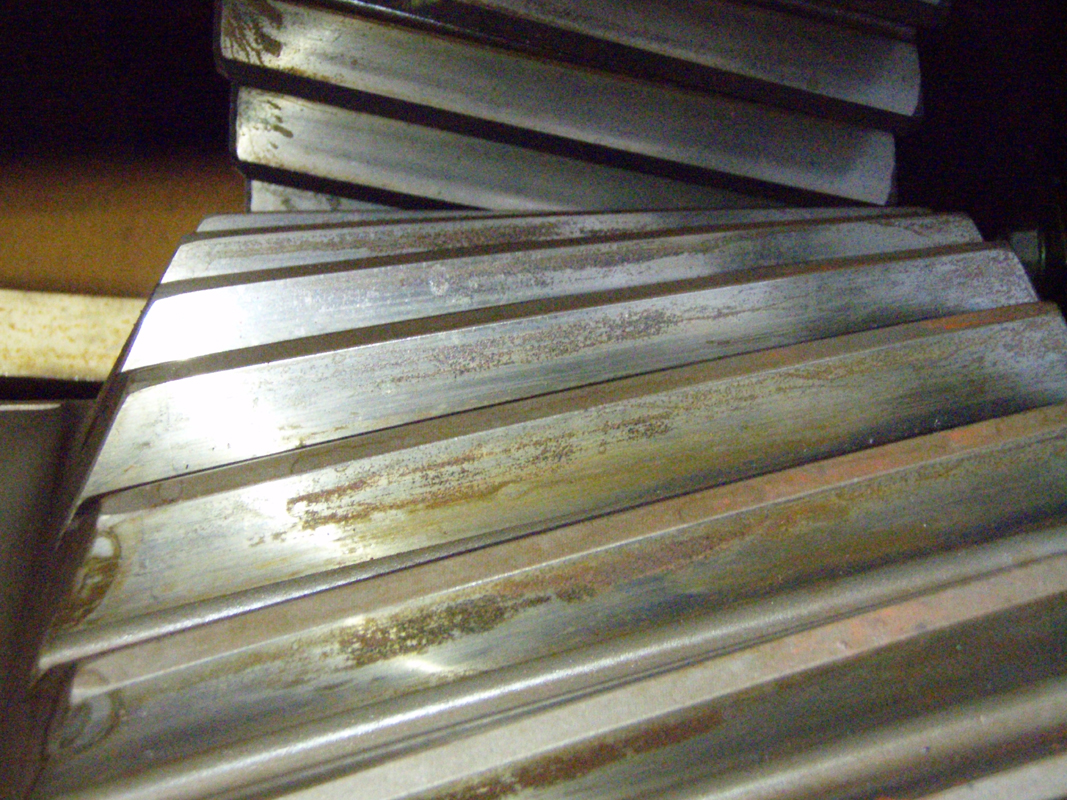

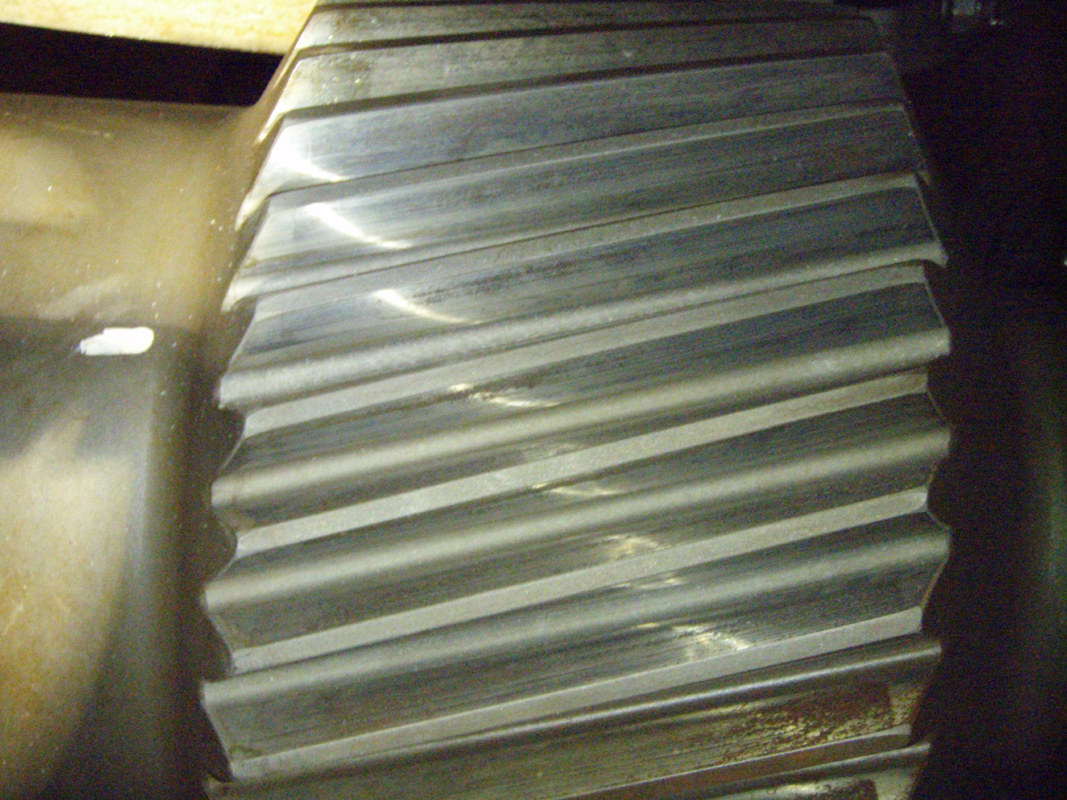

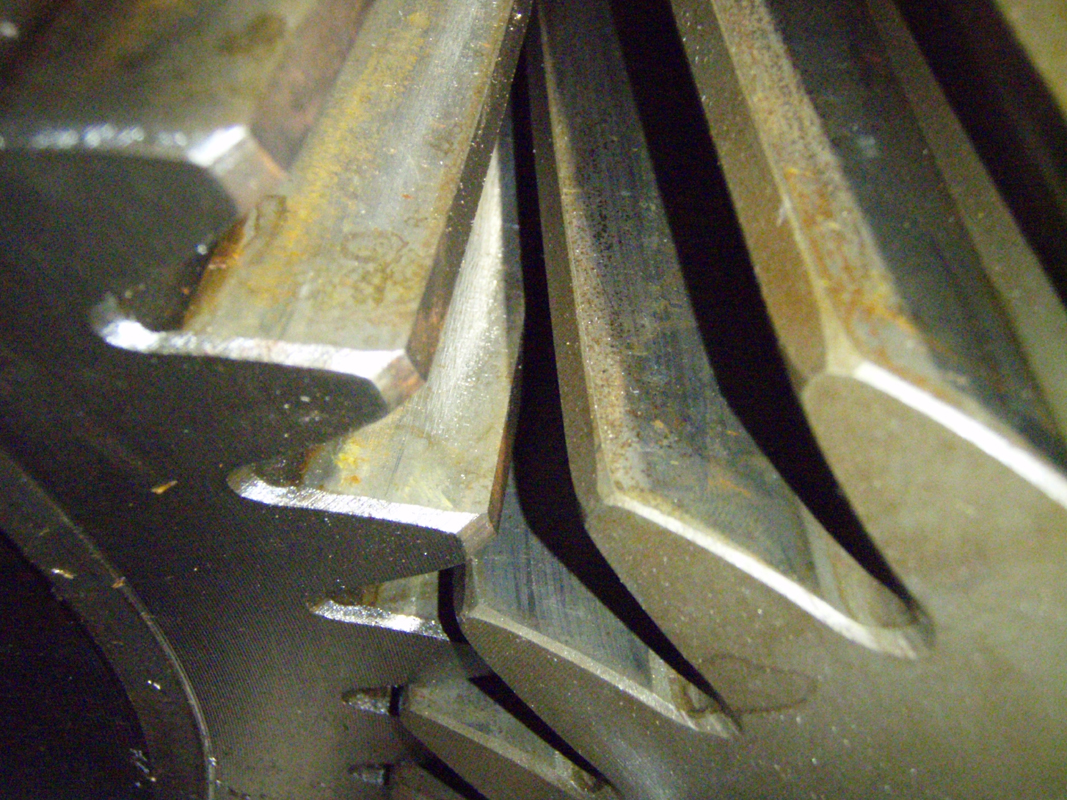

Notes: Good, rebuilt |
| Operate gear drives only at horsepower, speed and ratio shown on nameplate. Before changing any one of these, submit complete nameplate data and new application conditions to the manufacturer for correct oil level, accessories, parts and application approval. Check unit for thermal capacity. Check unit for over hung load capacity if shaft connections are anything other the direct coupled. |
