Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -
HOME
N A M E P L A T E       D A T A
Manufacturer:       Falk Our ID No.       007675
Model:       2130Y3S Ratio:       60.72
MO# or S/N       7-665999-01 Alt. S/N
IP Speed       1750 HP rating       100 Cat. Rating
OP Speed:       28.9 SF / SC       1.71
Date       Oil Capacity       38
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating       375,000 Lb-Inches Shaft Diameters High Speed:   2,000
Low Speed:   6,500
Weight       5,500 Lbs Approx. Assembly       1
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
60.72

30 RPM
171 HP
1430 RPM
25 RPM
141 HP
1170 RPM
20 RPM
119 HP
870 RPM
15 RPM
92 HP
720 RPM
12.5 RPM
77 HP
580 RPM
10 RPM
63 HP
Notes:
Condition:


Used

Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

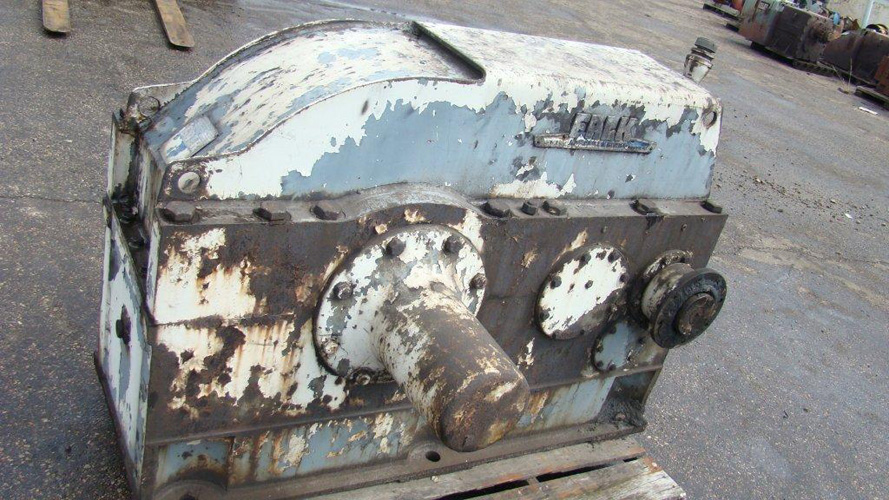

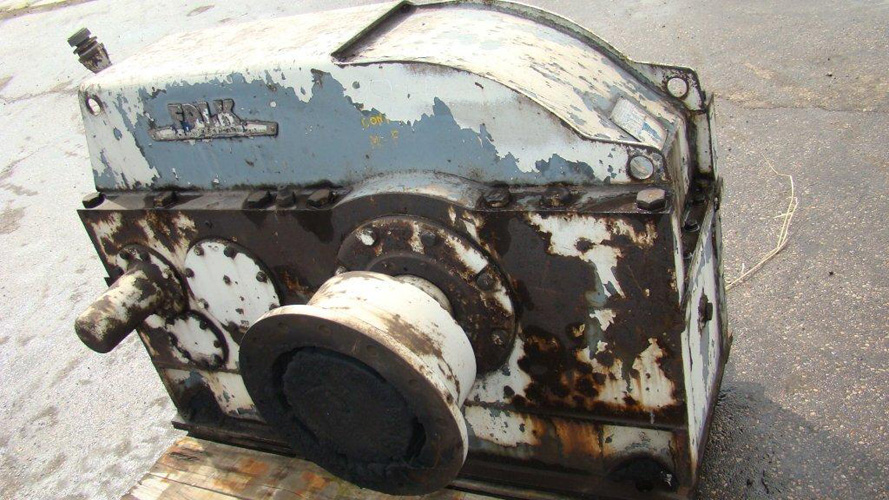

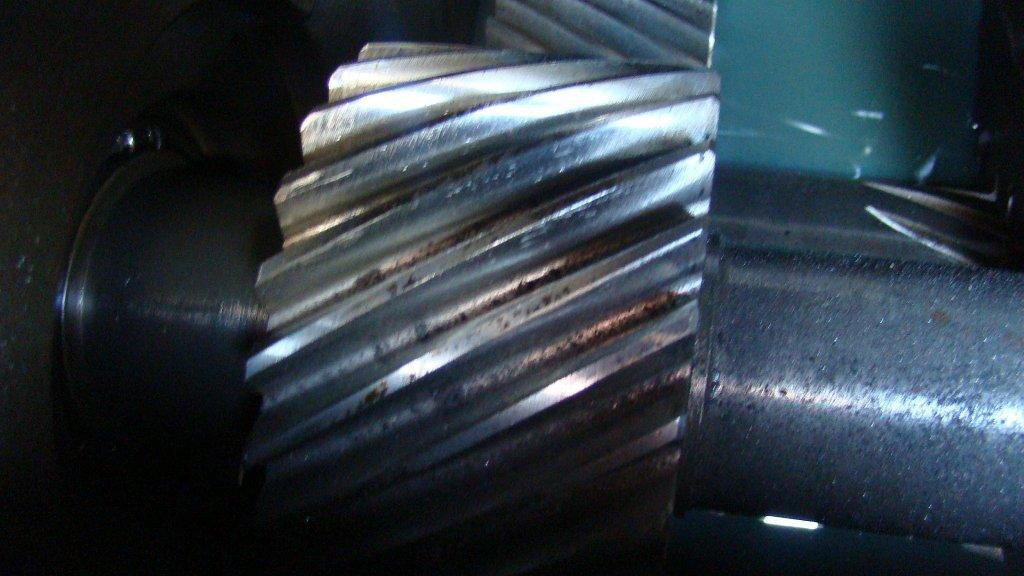

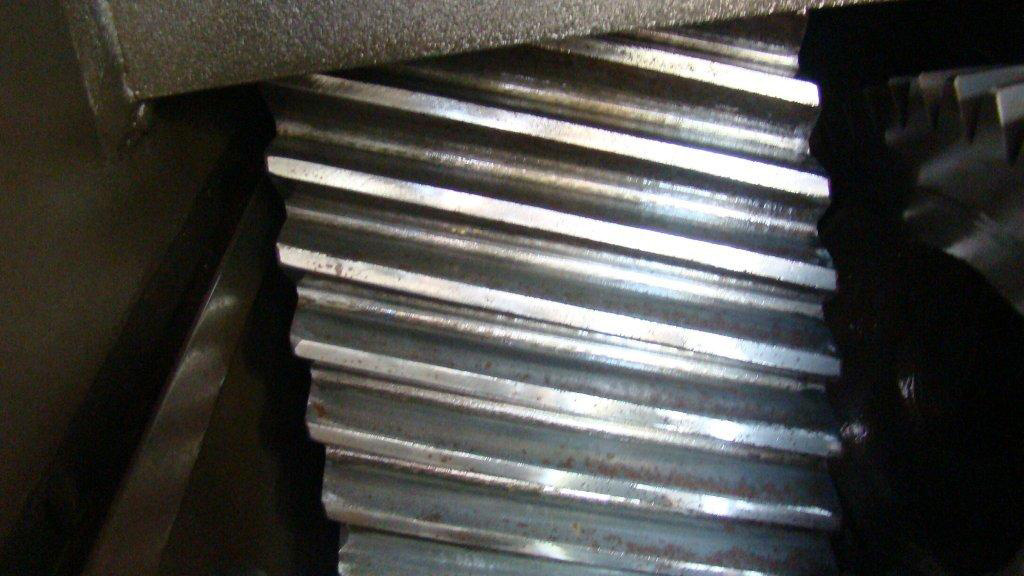

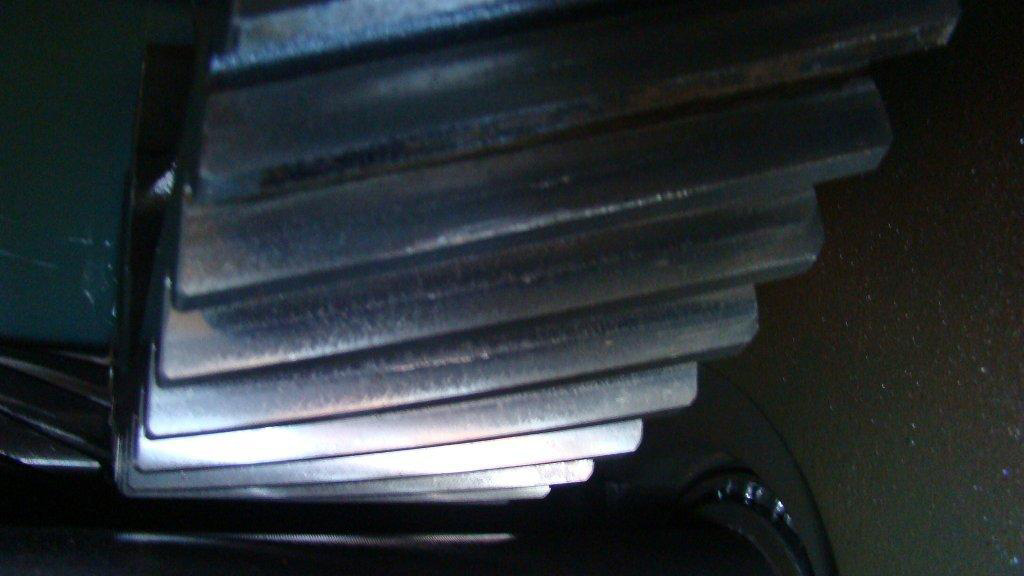

Click on images for larger view.
