- Speed Reducer Data Sheet -
HOME
N A M E P L A T E       D A T A
Manufacturer:       LUFKIN Our ID No.       007696
Model:       D195C Ratio:       11.50
MO# or S/N       2033 Alt. S/N
IP Speed       1750 HP rating       110 Cat. Rating       233
OP Speed:       152 SF / SC       2.12
Date       Oil Capacity       20 GAL
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating       103,000 Lb-Inches Shaft Diameters High Speed:   2,250
Low Speed:   4,500
Weight       2,000 Lbs Approx. Assembly       LR-LR
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
11.50

152 RPM
249 HP
1430 RPM
RPM
HP
1170 RPM
101 RPM
172 HP
870 RPM
75 RPM
134 HP
720 RPM
62 RPM
113 HP
580 RPM
50 RPM
92.7 HP
Notes:
Condition:


Used

Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

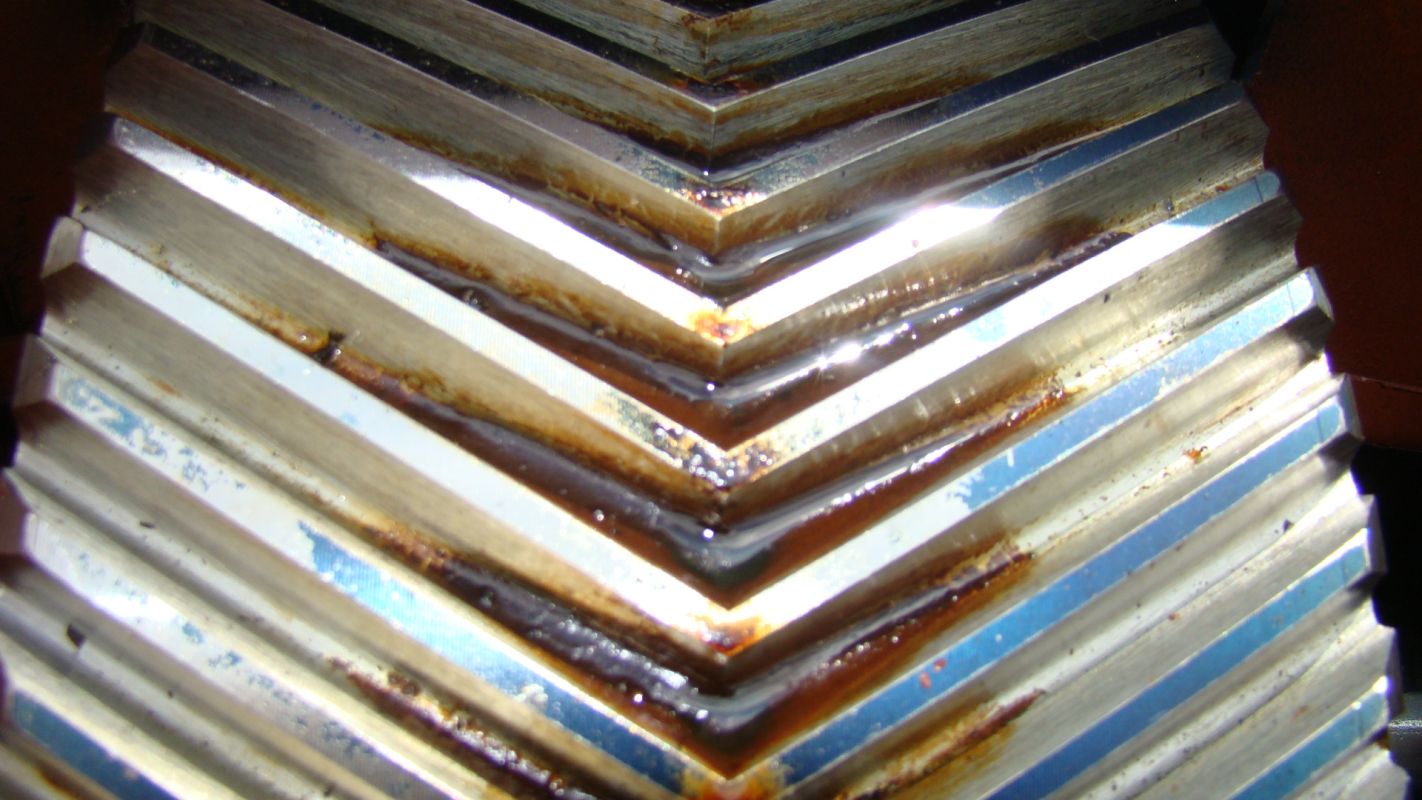

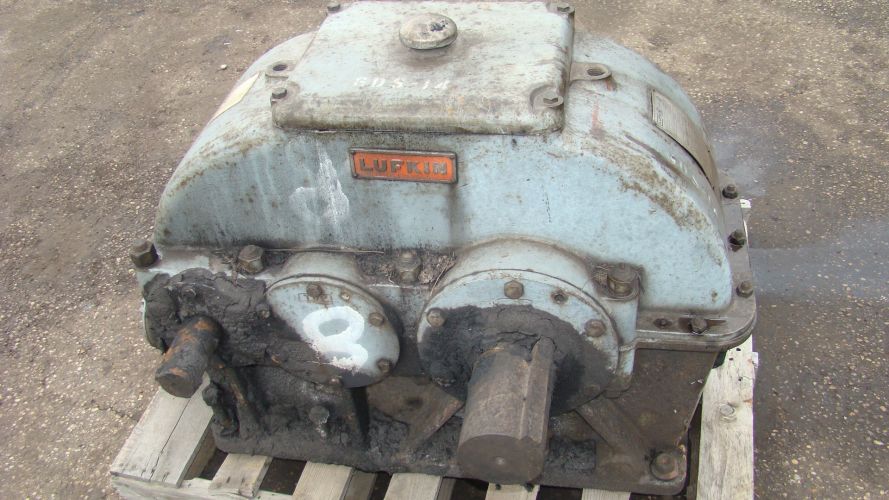

Click on images for larger view.
