Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -
HOME
N A M E P L A T E       D A T A
Manufacturer:      FALK Our ID No.      007798
Model:      1020FD2A Ratio:      14.23
MO# or S/N      00-031332-10 Alt. S/N
IP Speed      1750 HP rating      3.54 Cat. Rating
OP Speed:      123 SF / SC
Date      5/00 Oil Capacity      0.7
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating       Lb-Inches Shaft Diameters High Speed:  1.000
Low Speed:  1.500
Weight      90 Lbs Approx. Assembly
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
14.23

125 RPM
3.54 HP
1430 RPM
100 RPM
3.04 HP
1170 RPM
84 RPM
2.62 HP
870 RPM
62 RPM
2.10 HP
720 RPM
50 RPM
1.82 HP
580 RPM
42 RPM
1.55 HP
Notes:
Condition: USED


Used Surplus, Turns good. Oil looks good.

Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

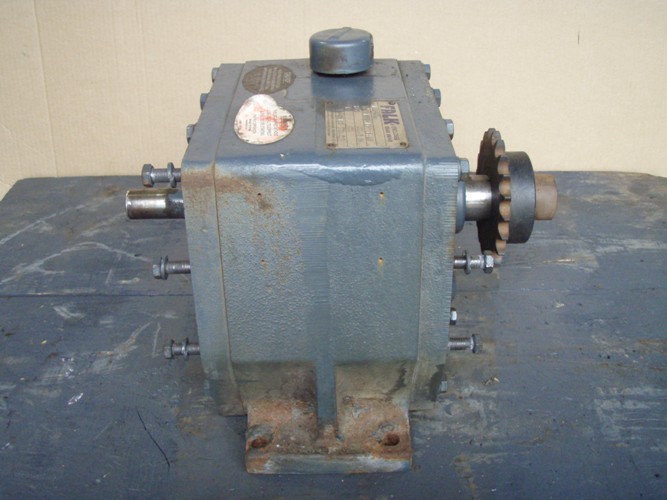

Click on images for larger view.
