Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -
HOME
N A M E P L A T E       D A T A
Manufacturer:      FALK Our ID No.      007803
Model:      1060F 3A Ratio:      46.59
MO# or S/N      9-2M3702-03 Alt. S/N
IP Speed      1750 HP rating       Cat. Rating
OP Speed:      37.56 SF / SC
Date      12/92 Oil Capacity      4.6
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating      28,000 Lb-Inches Shaft Diameters High Speed:  1.625
Low Speed:  2.750
Weight      340 Lbs Approx. Assembly
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
46.59

37 RPM
16.7 HP
1430 RPM
30 RPM
13.8 HP
1170 RPM
25 RPM
11.4 HP
870 RPM
18 RPM
8.65 HP
720 RPM
15 RPM
7.23 HP
580 RPM
12.5 RPM
5.88 HP
Notes:
Condition:


Used Surplus, Turns good

Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

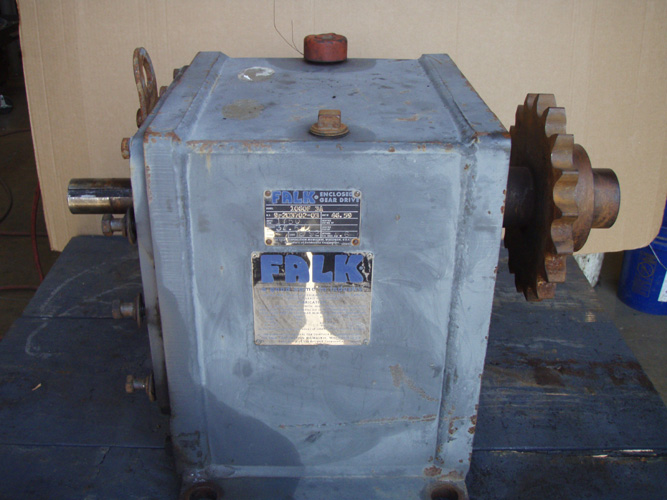

Click on images for larger view.
