- Speed Reducer Data Sheet -
N A M E P L A T E       D A T A
Manufacturer:      Falk Our ID No.      007807
Model:      2100Y1-LR Ratio:      3.360
MO# or S/N      8-765589-01 Alt. S/N
IP Speed      1233 HP rating      400 Cat. Rating
OP Speed:      367 SF / SC      1.92
Date      4-87 Oil Capacity      16
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating      136,000 Lb-Inches Shaft Diameters High Speed:  3.000
Low Speed:  5.000
Weight       Lbs Approx. Assembly      2
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings		 Thermal ratings
with 1 cooling fan
1750 RPM
3.360

520 RPM
1128 HP
484 HP
1430 RPM
420 RPM
980 HP
583 HP
1170 RPM
350 RPM
851 HP
Exceeds
Mechanical
Rating
870 RPM
260 RPM
685 HP
720 RPM
210 RPM
581 HP
580 RPM
175 RPM
469 HP
Notes:
Condition:

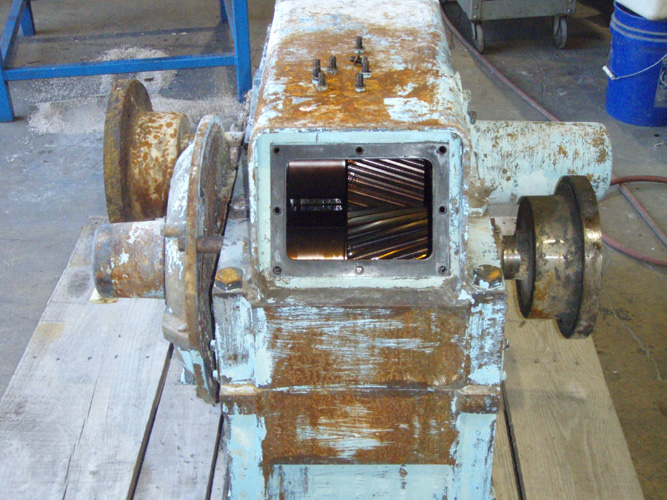

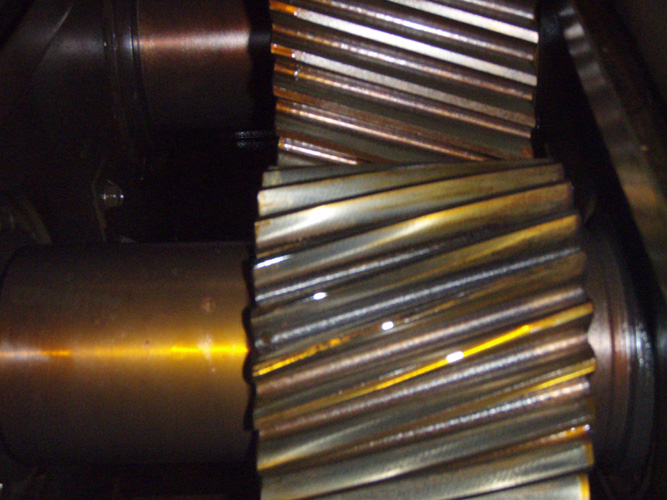

Used Surplus, Gearing very good. 1 Fan
