Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -
HOME
N A M E P L A T E       D A T A
Manufacturer:      FALK Our ID No.      007815
Model:      1070FZB3A Ratio:      20.52
MO# or S/N      97-0J8840-01 Alt. S/N
IP Speed      1750 HP rating      70.8 Cat. Rating
OP Speed:      85.3 SF / SC      1.00
Date      11/97 Oil Capacity      9
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating      52,300 Lb-Inches Shaft Diameters High Speed:  2.1250
Low Speed:  3.5000
Weight      1,200 Lbs Approx. Assembly
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
20.52

84 RPM
70.8 HP
1430 RPM
68 RPM
58.4 HP
1170 RPM
56 RPM
48.2 HP
870 RPM
42 RPM
36.2 HP
720 RPM
34 RPM
30.2 HP
580 RPM
28 RPM
24.5 HP
Notes:
Condition:


Unused surplus, LS Shaft down

Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

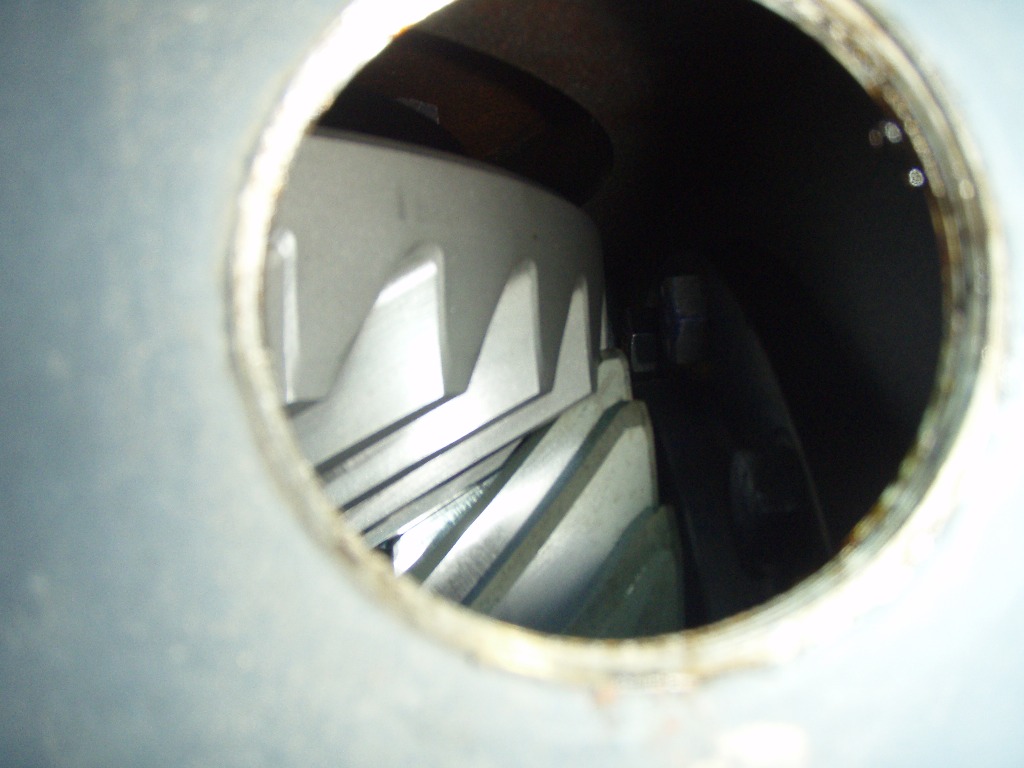

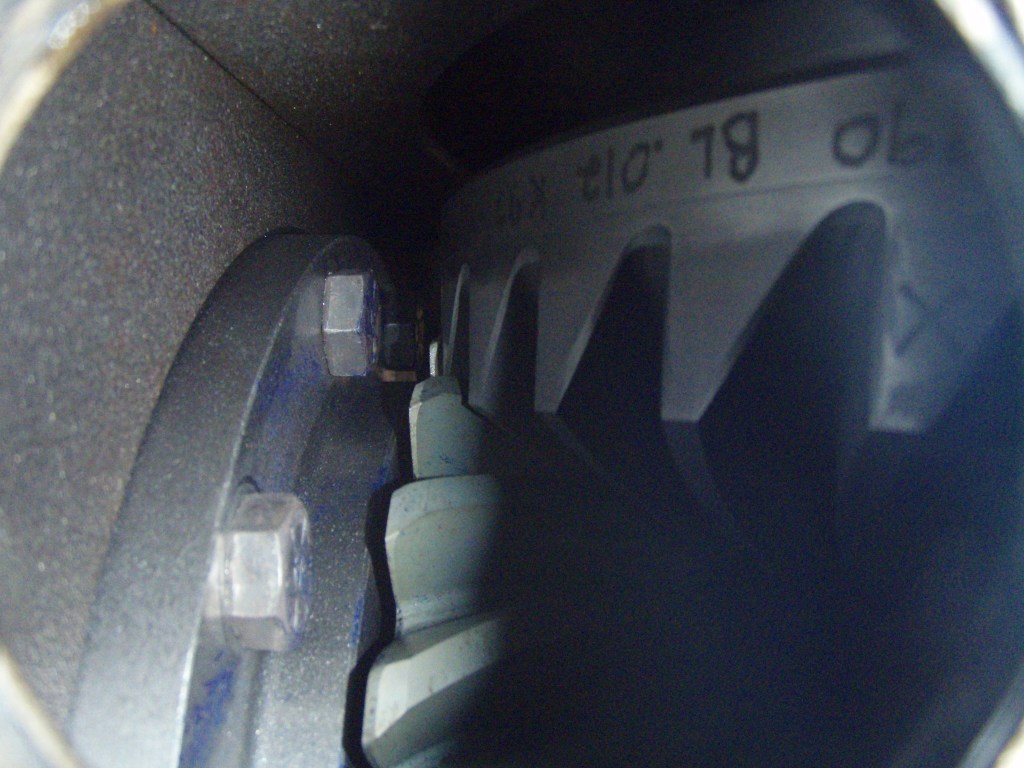

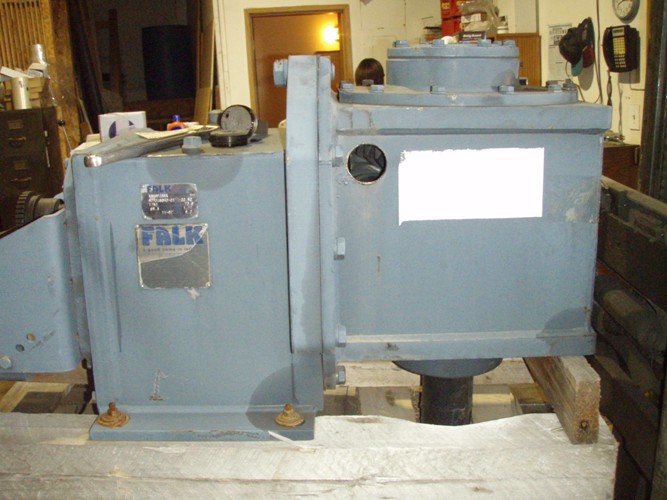

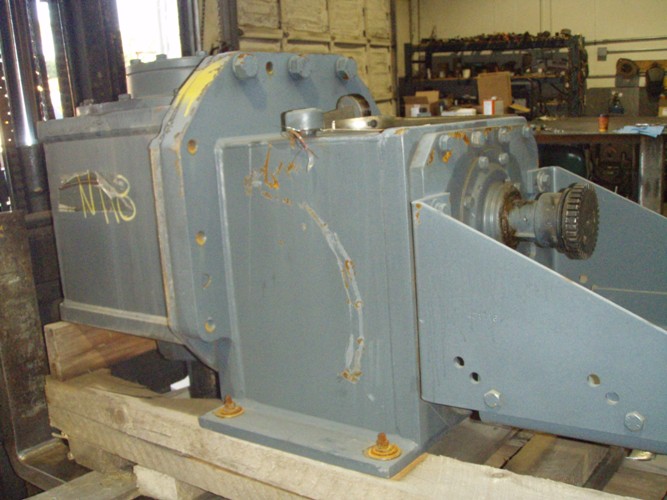

Click on images for larger view.
