- Speed Reducer Data Sheet -
N A M E P L A T E       D A T A
Manufacturer:      FALK Our ID No.      007816
Model:      2060Y1-L Ratio:      4.056
MO# or S/N      92-066208 Alt. S/N
IP Speed      1150 HP rating      75 Cat. Rating
OP Speed:      283.5 SF / SC      2.29
Date      08/92 Oil Capacity      2.3
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating      35,300 Lb-Inches Shaft Diameters High Speed:    2.000
Low Speed:    3.000
Weight      560 Lbs Approx. Assembly      19
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings		 Thermal
Ratings
W/O Cooling
1750 RPM
4.056

420 RPM
242 HP
135 HP
1430 RPM
350 RPM
204 HP
164 HP
1170 RPM
280 RPM
172 HP
Exceeds
Mechanical
Rating
870 RPM
210 RPM
133 HP
720 RPM
175 RPM
113 HP
580 RPM
140 RPM
93.4 HP
Notes:
Condition:


Unused Surplus

Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

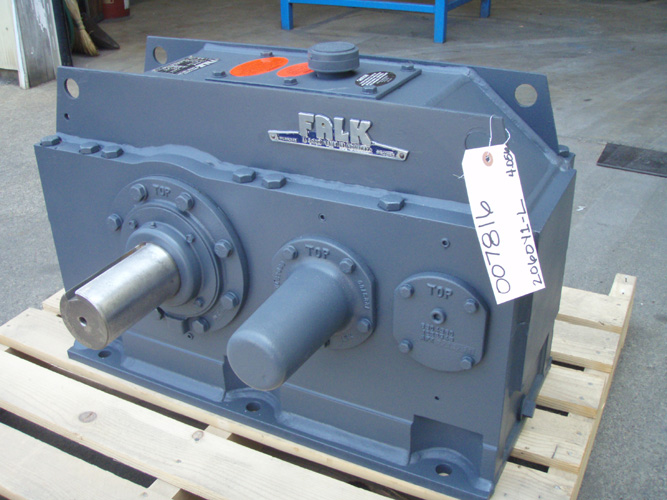

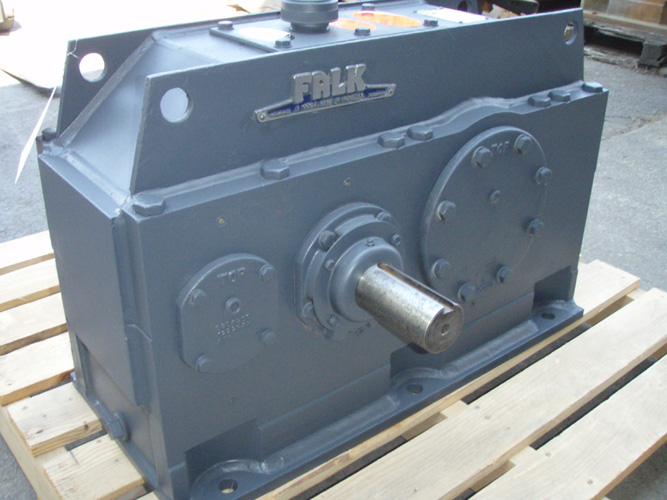

Click on images for larger view.
