- Speed Reducer Data Sheet -
N A M E P L A T E       D A T A
Manufacturer:      FALK Our ID No.      007817
Model:      2050Y1-S Ratio:      1.880
MO# or S/N      8-066812-01 Alt. S/N
IP Speed      1170 HP rating      100 Cat. Rating
OP Speed:      622.3 SF / SC      1.76
Date      5/81 Oil Capacity      2.62
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating      15,700 Lb-Inches Shaft Diameters High Speed:    1.750
Low Speed:    2.750
Weight      440 Lbs Approx. Assembly
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings		 Thermal
Ratings
W/O Cooling
1750 RPM
1.880

950 RPM
232 HP
97 HP
1430 RPM
780 RPM
201 HP
122 HP
1170 RPM
640 RPM
175 HP
154 HP
870 RPM
470 RPM
142 HP
HP
720 RPM
390 RPM
124 HP
HP
580 RPM
320 RPM
107HP
HP
Notes:

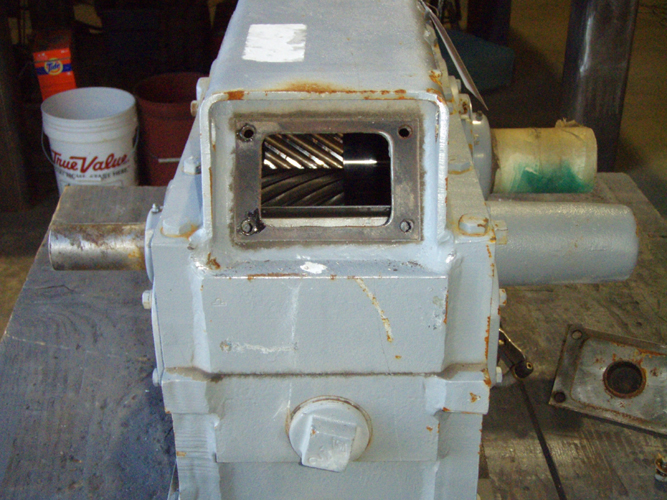

Condition:Rebuilt

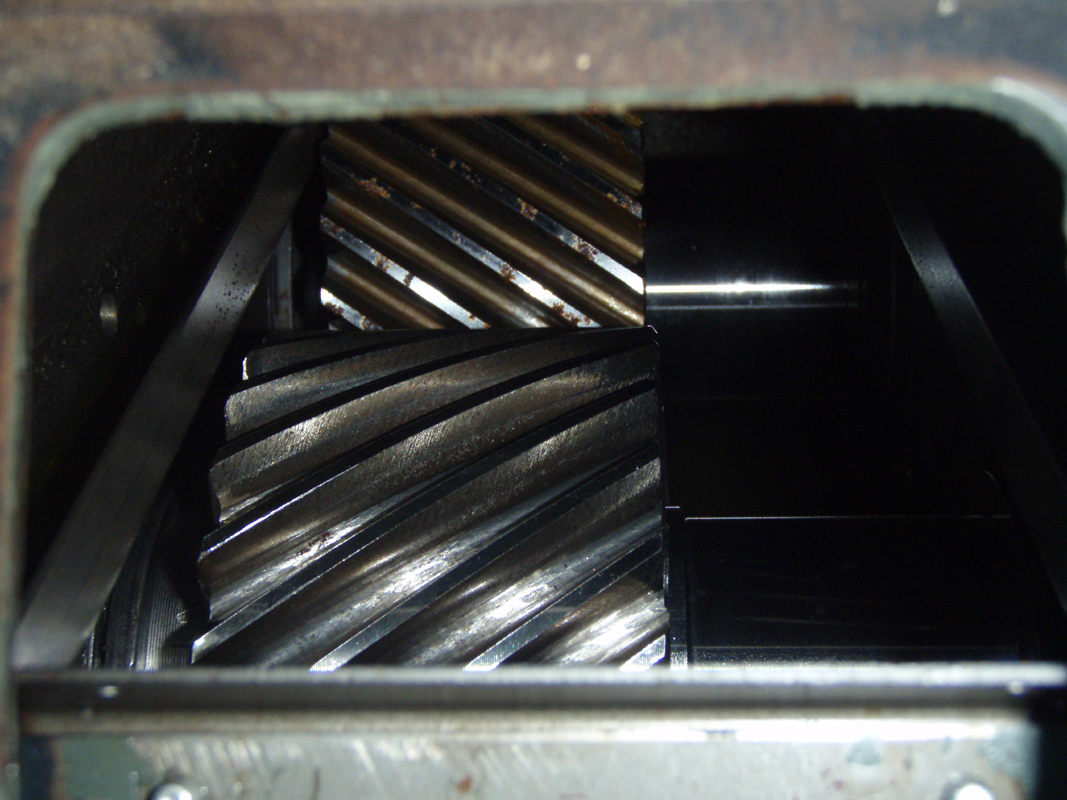

Gearing fine fine pitting, some rust, drilled for central lube
