- Speed Reducer Data Sheet -
HOME
N A M E P L A T E       D A T A

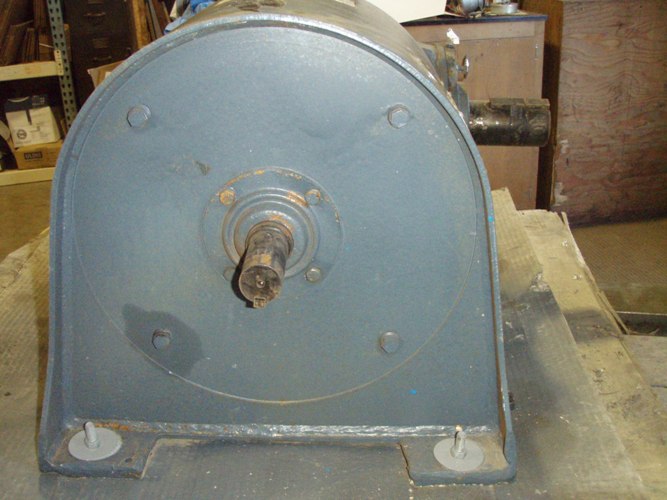

Manufacturer:      FALK Our ID No.      007818
Model:      4EBZ3-16B6 Ratio:      25.64
MO# or S/N      04-0R0567-02 Alt. S/N
IP Speed      1750 HP rating      7.5 Cat. Rating
OP Speed:      68 SF / SC
Date      8/04 Oil Capacity
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating      13,800 Lb-Inches Shaft Diameters High Speed:  1.375
Low Speed:  2.500
Weight      500 Lbs Approx. Assembly
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
25.64

68 RPM
15.1 HP
1430 RPM
56 RPM
12.4 HP
1170 RPM
45 RPM
10.2 HP
870 RPM
34 RPM
7.55 HP
720 RPM
28 RPM
6.26 HP
580 RPM
RPM
HP
Notes:
Condition:


Rebuilt Falk Renew
