- Speed Reducer Data Sheet -
N A M E P L A T E       D A T A
Manufacturer:      FALK Our ID No.      007819
Model:      700MDXD3AZ Ratio:      157.10
MO# or S/N      91-065229 Alt. S/N
IP Speed      1750 HP rating      10 Cat. Rating
OP Speed:      11.1 SF / SC      1.5
Date      11/91 Oil Capacity      22.0
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating      16,500 Lb-Inches Shaft Diameters High Speed:  2.00
Low Speed:  5.750
Weight       Lbs Approx. Assembly
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings		 Thermal
Ratings
W/O Cooling
1750 RPM
157.10

11 RPM
16.5 HP
HP
1430 RPM
9 RPM
13.8 HP
HP
1170 RPM
7.5 RPM
11.5 HP
HP
870 RPM
5.5 RPM
8.78 HP
HP
720 RPM
4.5 RPM
7.39 HP
HP
580 RPM
3.8 RPM
6.05 HP
HP
Notes:
Condition:



Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

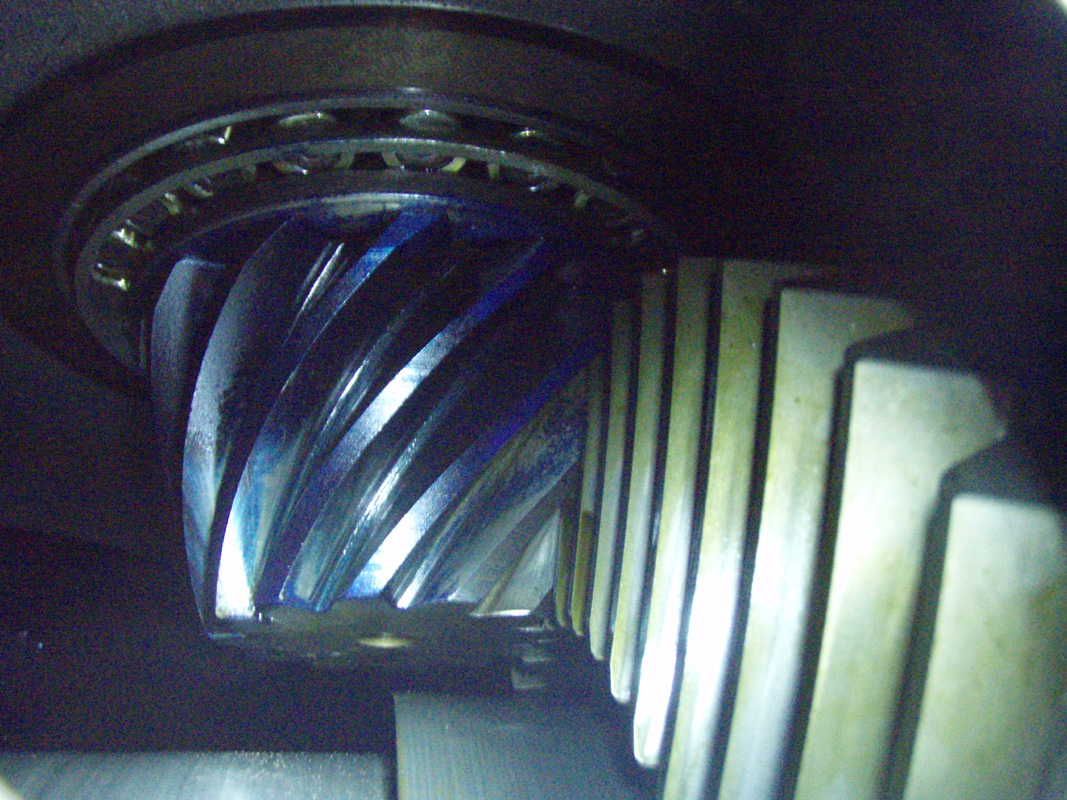

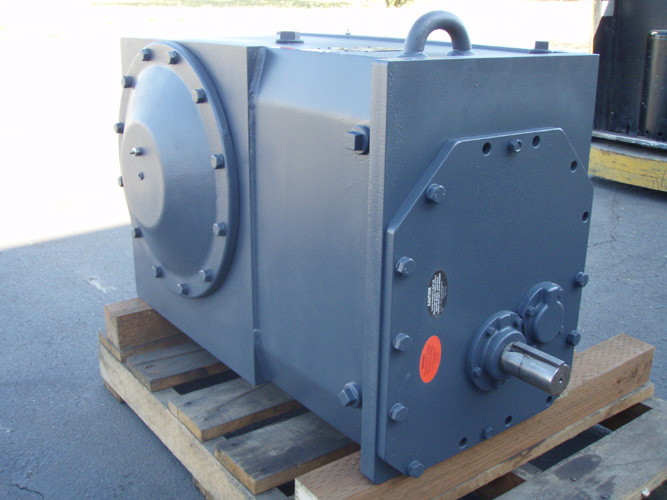

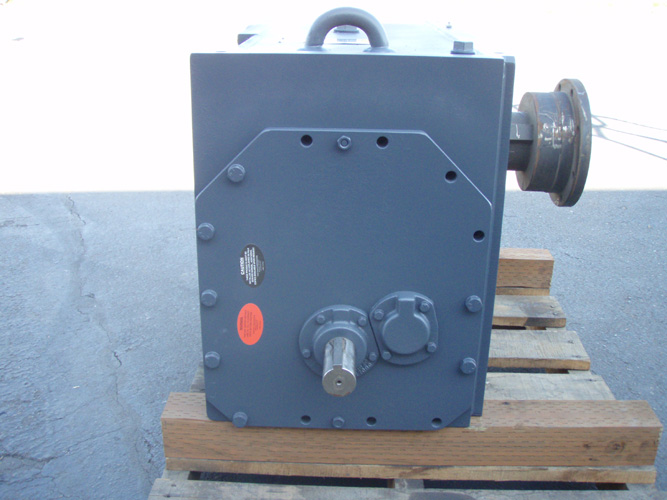

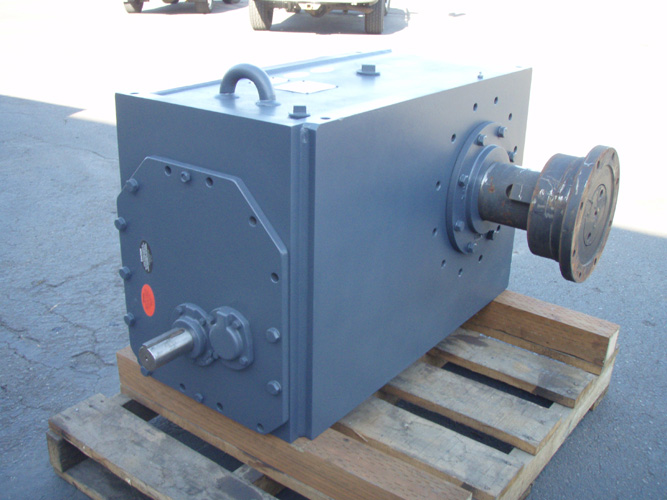

Click on images for larger view.
