Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -
N A M E P L A T E       D A T A
Manufacturer:      Falk Our ID No.      007832
Model:      2080FZ3A Ratio:      107.7
MO# or S/N      05-0B3453-01 Alt. S/N
IP Speed      1750 HP rating      15 Cat. Rating      23.8
OP Speed:      16.5 SF / SC      1.59
Date      10/05 Oil Capacity      10
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating      92,300 Lb-Inches Shaft Diameters High Speed:    2.000
Low Speed:    3.500
Weight      750 Lbs Approx. Assembly
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings		 Thermal
Ratings
W/O Cooling
1750 RPM
107.7

16.5 RPM
23.8 HP
35.8 HP
1430 RPM
13.5 RPM
19.5 HP
34.6 HP
1170 RPM
11 RPM
15.9 HP
33.2 HP
870 RPM
8.3 RPM
11.8 HP
31.0 HP
720 RPM
6.8 RPM
9.79 HP
29.6 HP
580 RPM
5.5 RPM
7.89 HP
27.9 HP
Notes:
Condition:Used


Used Surplus

Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

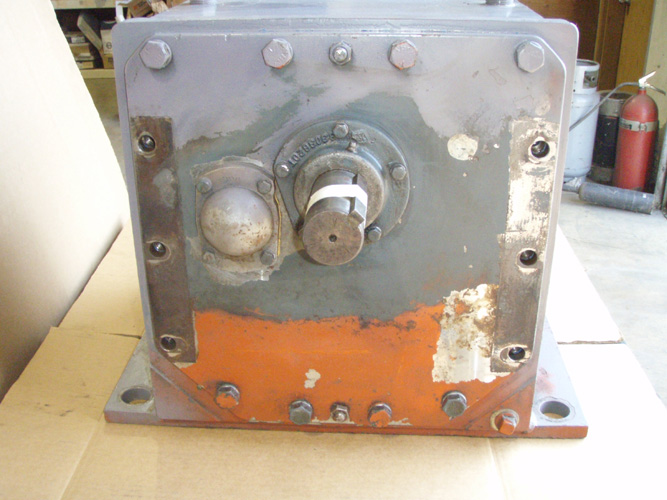

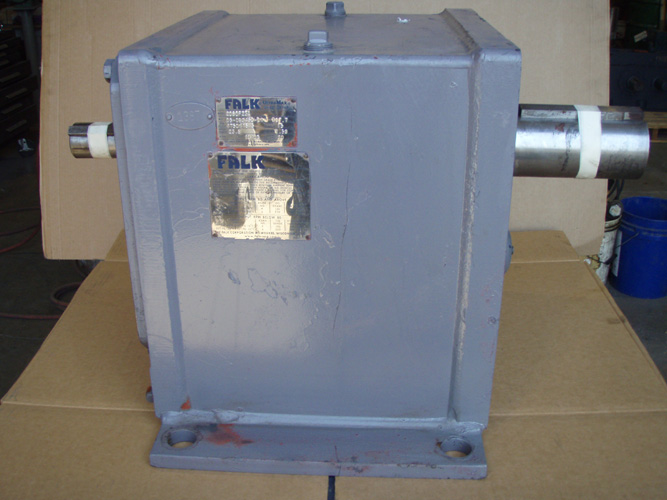

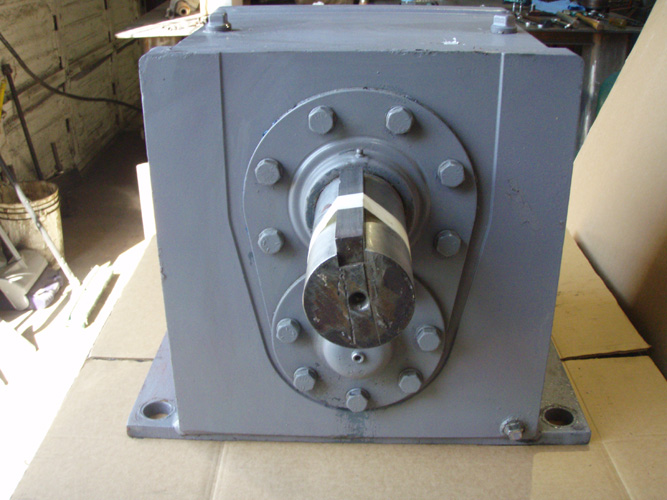

Click on images for larger view.
