- Speed Reducer Data Sheet -
HOME
N A M E P L A T E       D A T A

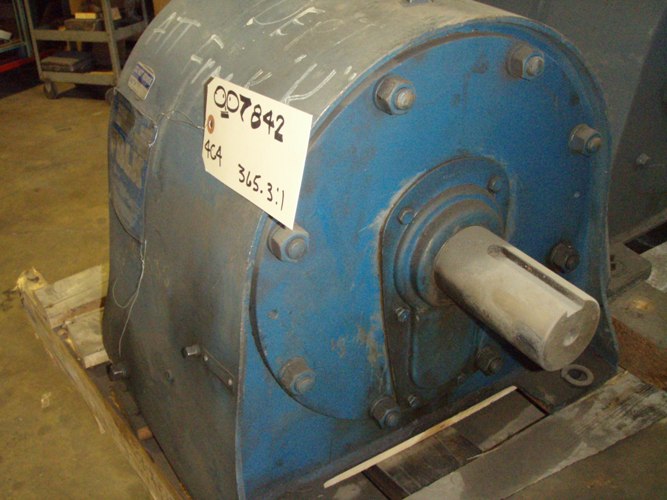

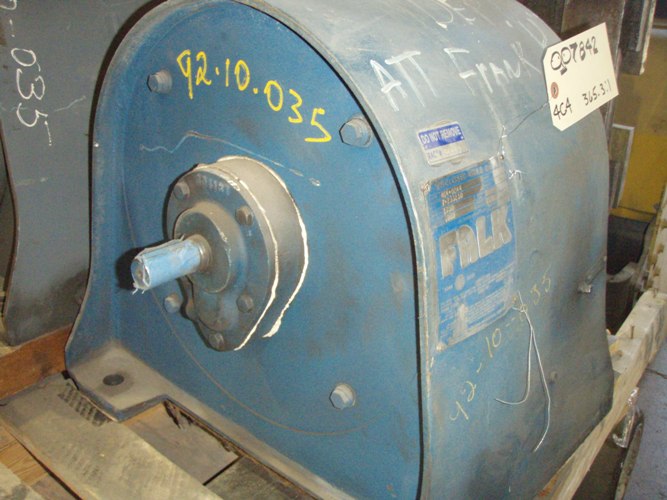

Manufacturer:      FALK Our ID No.      007842
Model:      4C4-02A4 Ratio:      365.3
MO# or S/N      7-233230 Alt. S/N
IP Speed      1750 HP rating      .860 Cat. Rating
OP Speed:      5 SF / SC      1.0
Date      6/72 Oil Capacity
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating      11,500 Lb-Inches Shaft Diameters High Speed:  1.000
Low Speed:  2.500
Weight      340 Lbs Approx. Assembly
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
365.3

5 RPM
.860 HP
1430 RPM
4 RPM
.708 HP
1170 RPM
3.2 RPM
.578 HP
870 RPM
2.5 RPM
.432 HP
720 RPM
2.0 RPM
.360 HP
580 RPM
RPM
HP
Notes:
Condition:


Used Surplus Turns good
