- Speed Reducer Data Sheet -
HOME
N A M E P L A T E       D A T A
Manufacturer:      FALK Our ID No.      007882
Model:      2080FD2AES Ratio:      31.75
MO# or S/N      00-030708-D1 Alt. S/N
IP Speed      1780/890 HP rating      50/25 Cat. Rating       56/29
OP Speed:      56/29 SF / SC      1.6
Date      3/00 Oil Capacity
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating      87,100 Lb-Inches Shaft Diameters High Speed:  2.25
Low Speed:  3.50
Weight      680 Lbs Approx. Assembly
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
31.75

56 RPM
77.7 HP
1430 RPM
45 RPM
64 HP
1170 RPM
37 RPM
52.7 HP
870 RPM
28 RPM
39.5 HP
720 RPM
22 RPM
32.8 HP
580 RPM
18 RPM
26.5 HP
Notes:
Condition:Unused Surplus


Unused Surplus

Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

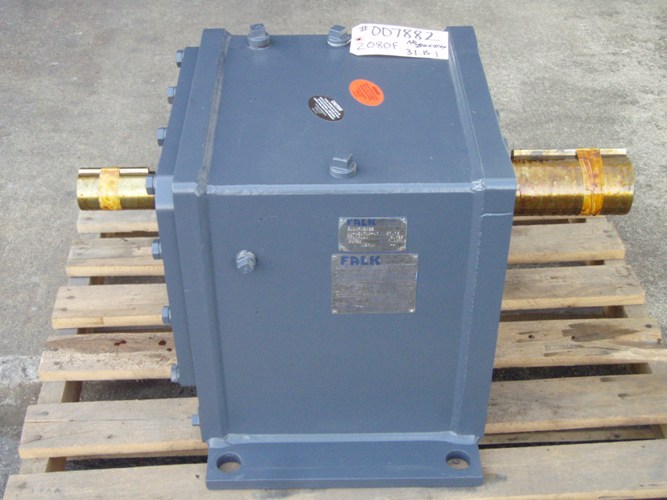

Click on images for larger view.
