- Speed Reducer Data Sheet -
HOME
N A M E P L A T E       D A T A
Manufacturer:      FALK Our ID No.      007886
Model:      2185YN3-LS Ratio:      60.25
MO# or S/N      06-0R1094 Alt. S/N
IP Speed      1200 HP rating      330 Cat. Rating      488.4
OP Speed:      19.9 SF / SC      1.48
Date      07/07 Oil Capacity      165
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating      1,546,000 Lb-Inches Shaft Diameters High Speed:  3.500
Low Speed:  10.000
Weight      20,000 Lbs Approx. Assembly
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
60.25

29 RPM
646 HP
1430 RPM
24 RPM
560 HP
1170 RPM
20 RPM
488 HP
870 RPM
14.4 RPM
388 HP
720 RPM
12 RPM
324 HP
580 RPM
9.6 RPM
262 HP
Notes:
Condition:


250F LOW SPEED COUPLING

Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

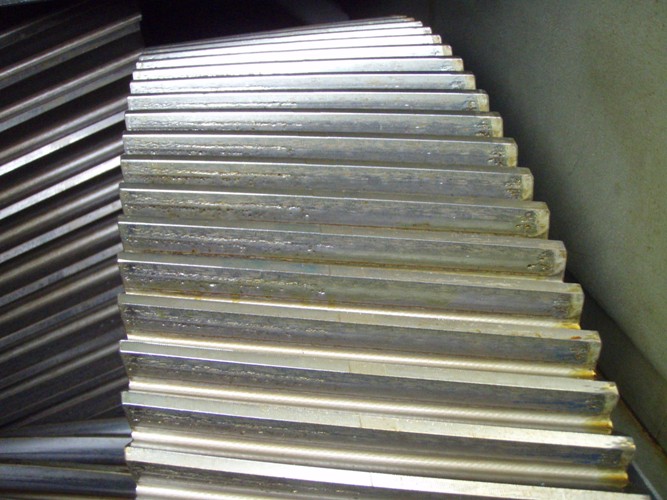

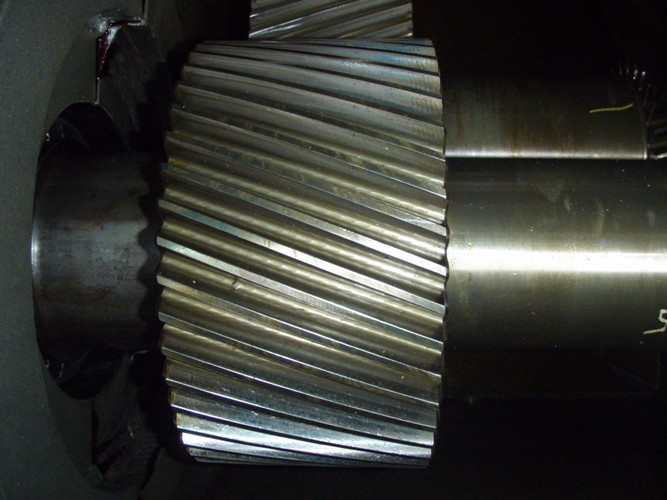

Click on images for larger view.
