- Speed Reducer Data Sheet -
HOME
N A M E P L A T E       D A T A
Manufacturer:      FALK Our ID No.      007909
Model:      1120YF1-S Ratio:      6.783
MO# or S/N      8-065962-01 Alt. S/N
IP Speed      1170 HP rating      250 Cat. Rating
OP Speed:      172.50 SF / SC      2.20
Date       Oil Capacity       11
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating      209,000 Lb-Inches Shaft Diameters High Speed:  4.00
Low Speed:  6.00
Weight      3,730 Lbs Approx. Assembly
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
6.783

255 RPM
854 HP
1430 RPM
210 RPM
711 HP
1170 RPM
170 RPM
591 HP
870 RPM
130 RPM
450 HP
720 RPM
105 RPM
378 HP
580 RPM
85 RPM
308 HP
Notes:
Condition:New Surplus

Input Shaft is Rifle Drilled.

Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

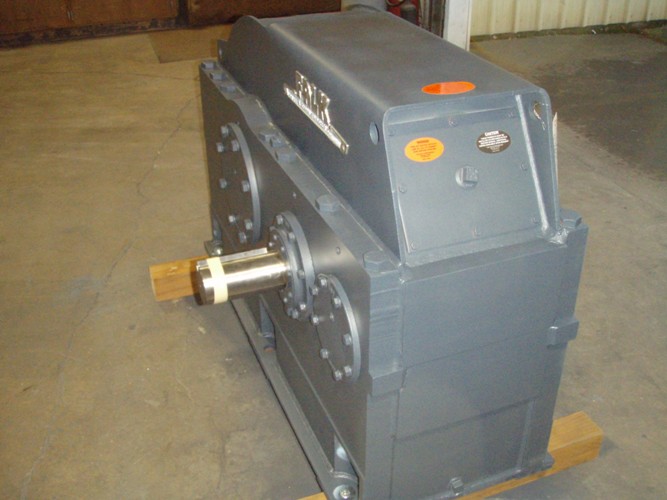

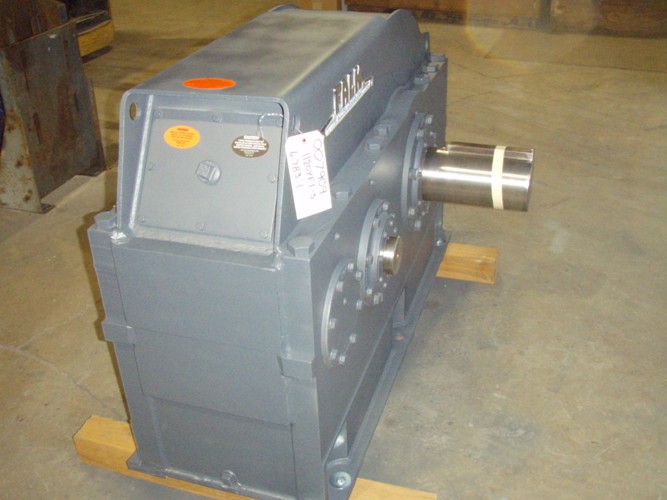

Click on images for larger view.
