- Speed Reducer Data Sheet -
HOME
N A M E P L A T E       D A T A
Manufacturer:      FALK Our ID No.      007913
Model:      10UBBJ5A160A1D Ratio:      160
MO# or S/N      080B9282 Alt. S/N
IP Speed      1750 HP rating       Cat. Rating      12.9
OP Speed:       SF / SC
Date      10/08 Oil Capacity
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating      64,163 Lb-Inches Shaft Diameters High Speed:  210TC 213TC 215TC
Low Speed:  3.438
Weight       Lbs Approx. Assembly      1
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
160

11 RPM
11.24 HP
1430 RPM
RPM
HP
1170 RPM
7.3 RPM
7.45 HP
870 RPM
5.4 RPM
5.62 HP
720 RPM
RPM
HP
580 RPM
RPM
HP
Notes:
Condition: NEW


NEW Surplus

Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

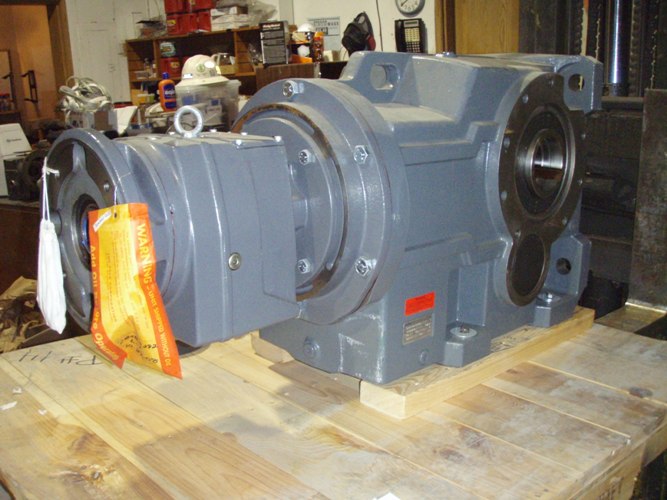

Click on images for larger view.
