- Speed Reducer Data Sheet -
HOME

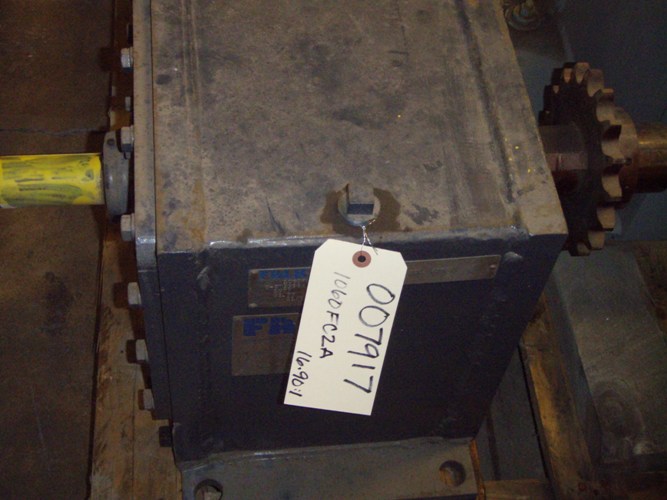

N A M E P L A T E       D A T A
Manufacturer:      FALK Our ID No.      007917
Model:      1060FC2A Ratio:      16.90
MO# or S/N      8-2M3596 (27) Alt. S/N
IP Speed      1077 HP rating      7.5 Cat. Rating
OP Speed:      63.77 SF / SC      3.90
Date      11/82 Oil Capacity      4.2
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating      27,500 Lb-Inches Shaft Diameters High Speed:  1.875
Low Speed:  2.750
Weight      340 Lbs Approx. Assembly
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
16.90

100 RPM
45.2 HP
1430 RPM
84 RPM
38.6 HP
1170 RPM
68 RPM
31.8 HP
870 RPM
50 RPM
23.9 HP
720 RPM
42 RPM
19.9 HP
580 RPM
34 RPM
16.1 HP
Notes:
Condition:Used


Used Surplus
