- Speed Reducer Data Sheet -
HOME
N A M E P L A T E       D A T A
Manufacturer:      FALK Our ID No.      007919
Model:      1100F3A Ratio:      38.05
MO# or S/N      8-6M1763-02 Alt. S/N
IP Speed      1750 HP rating      40 Cat. Rating
OP Speed:      45 SF / SC      2
Date      6/86 Oil Capacity       2.1
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating      118,000 Lb-Inches Shaft Diameters High Speed:   2.125
Low Speed:   4.500
Weight       1320 Lbs Approx. Assembly
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
38.05

45 RPM
86.2 HP
1430 RPM
37 RPM
71.6 HP
1170 RPM
30 RPM
59.5 HP
870 RPM
22 RPM
45.1 HP
720 RPM
18 RPM
37.8 HP
580 RPM
15 RPM
30.8 HP
Notes:
Condition: USED


Used Surplus

Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

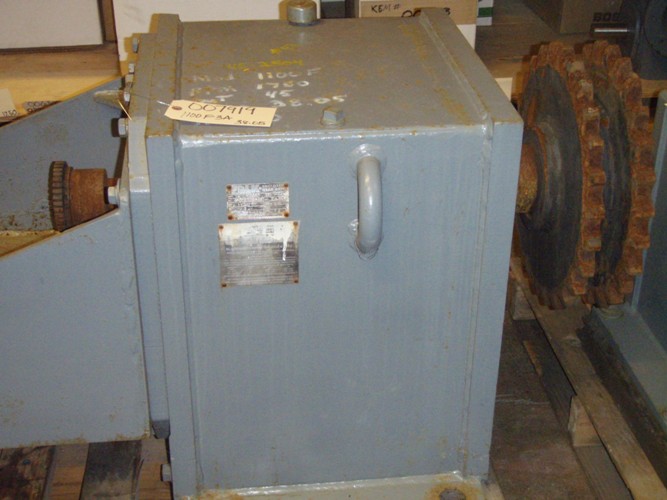

Click on images for larger view.
