- Speed Reducer Data Sheet -
HOME
N A M E P L A T E       D A T A
Manufacturer:       FALK Our ID No.      007926
Model:       1060FC2A Ratio:      9.110
MO# or S/N       9-M1508 Alt. S/N
IP Speed      1750 HP rating      10 Cat. Rating
OP Speed:      190 SF / SC      2.00
Date      05/94 Oil Capacity      3.2
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating      23,000 Lb-Inches Shaft Diameters High Speed:  1.875
Low Speed:  2.750
Weight      340 Lbs Approx. Assembly
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
9.110

190 RPM
70.2 HP
1430 RPM
155 RPM
60.3 HP
1170 RPM
125 RPM
51.9 HP
870 RPM
95 RPM
41.5 HP
720 RPM
77 RPM
36 HP
580 RPM
62 RPM
29.4 HP
Notes:
Condition: Used


Used Surplus

Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

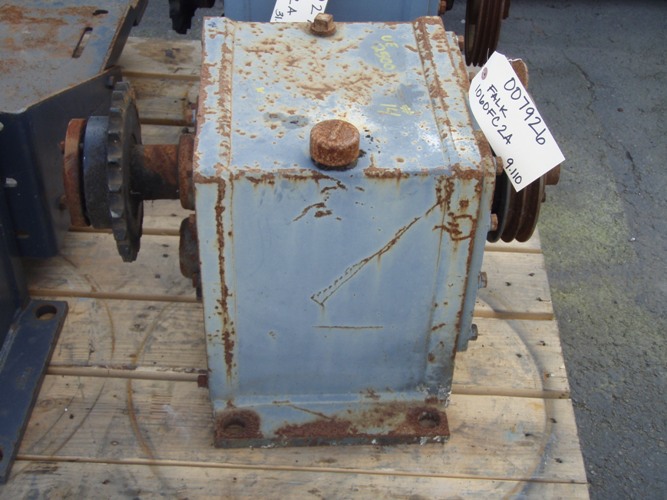

Click on images for larger view.
