- Speed Reducer Data Sheet -
HOME
N A M E P L A T E       D A T A

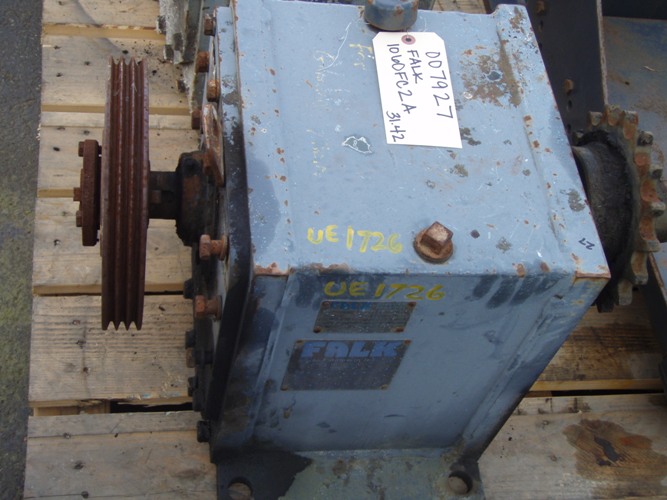

Manufacturer:      FALK Our ID No.      007927
Model:      1060FC2A Ratio:      31.42
MO# or S/N      8-3M4450-01 Alt. S/N
IP Speed      1430 HP rating      25.8 Cat. Rating
OP Speed:       SF / SC      1.0
Date       Oil Capacity      4.4
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating      29,200 Lb-Inches Shaft Diameters High Speed:  1.875
Low Speed:  2.750
Weight      340 Lbs Approx. Assembly
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
31.42

56 RPM
25.8 HP
1430 RPM
45 RPM
21.2 HP
1170 RPM
37 RPM
17.4 HP
870 RPM
28 RPM
13.1 HP
720 RPM
22 RPM
10.9 HP
580 RPM
18 RPM
8.78 HP
Notes:
Condition:Used


Used Surplus
