Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -
HOME
N A M E P L A T E       D A T A

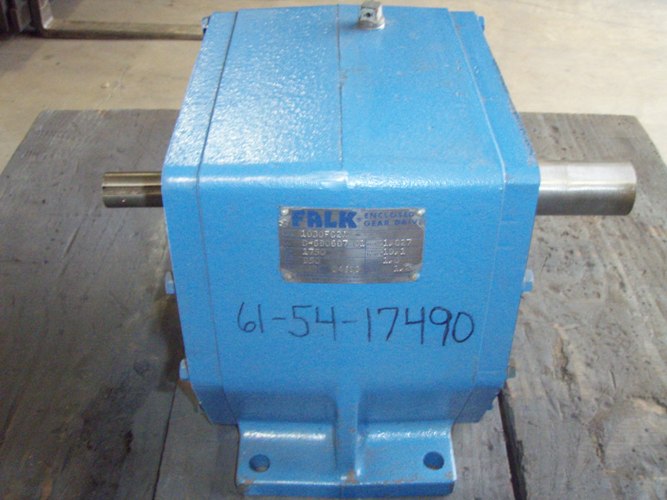

Manufacturer:      FALK Our ID No.      007935
Model:      1030FC2A Ratio:      1.827
MO# or S/N      86B0687 01 Alt. S/N
IP Speed      1750 HP rating      19.1 Cat. Rating
OP Speed:      950 SF / SC      1.0
Date      4/86 Oil Capacity       1.2
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating      1,260 Lb-Inches Shaft Diameters High Speed:  1.125
Low Speed:  1.750
Weight      140 Lbs Approx. Assembly
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
1.827

950 RPM
19.1 HP
1430 RPM
780 RPM
16.4 HP
1170 RPM
640 RPM
14.2 HP
870 RPM
470 RPM
10.9 HP
720 RPM
390 RPM
9.12 HP
580 RPM
320 RPM
7.43 HP
Notes:
Condition: USED


Used Surplus
