Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -
HOME
N A M E P L A T E       D A T A
Manufacturer:       FALK Our ID No.      007936
Model:      52-1030FZ2A Ratio:      7.691
MO# or S/N      8-6A2286 01 Alt. S/N
IP Speed      1750 HP rating      230 Cat. Rating
OP Speed:      230 SF / SC      2
Date      9/86 Oil Capacity      1.2
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating      4,400 Lb-Inches Shaft Diameters High Speed:  1.125
Low Speed:  1.750
Weight      140 Lbs Approx. Assembly
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
7.691

230 RPM
15.9 HP
1430 RPM
190 RPM
13.7 HP
1170 RPM
155 RPM
11.8 HP
870 RPM
115 RPM
9.00 HP
720 RPM
95 RPM
7.49 HP
580 RPM
77 RPM
6.08 HP
Notes:
Condition: USED


Used Surplus

Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

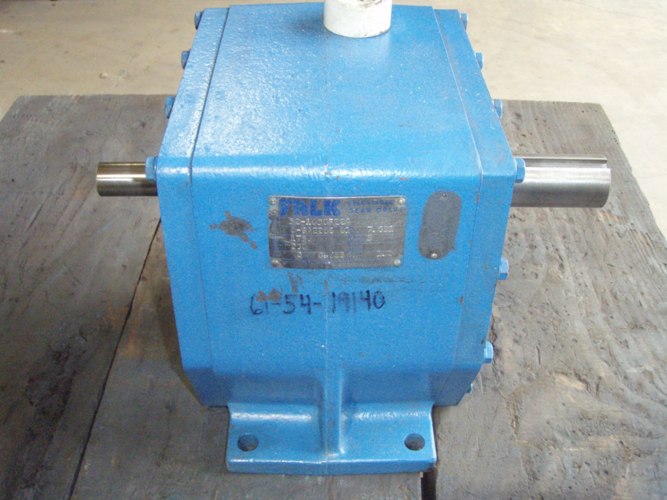

Click on images for larger view.
