Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -
HOME
N A M E P L A T E       D A T A
Manufacturer:      FALK Our ID No.      007947
Model:      2100F3A Ratio:      48.39
MO# or S/N      07-0B4453-01 Alt. S/N
IP Speed      1750 HP rating      119 Cat. Rating
OP Speed:      37 SF / SC      1.0
Date       Oil Capacity
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating      207,000 Lb-Inches Shaft Diameters High Speed:  2.125
Low Speed:  4.500
Weight      1320 Lbs Approx. Assembly
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
48.39

37 RPM
119 HP
1430 RPM
30 RPM
98.6 HP
1170 RPM
25 RPM
80.8 HP
870 RPM
18 RPM
60.2 HP
720 RPM
15 RPM
49.8 HP
580 RPM
12.5 RPM
40.2 HP
Notes:
Condition:Unused


Unsed Surplus

Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

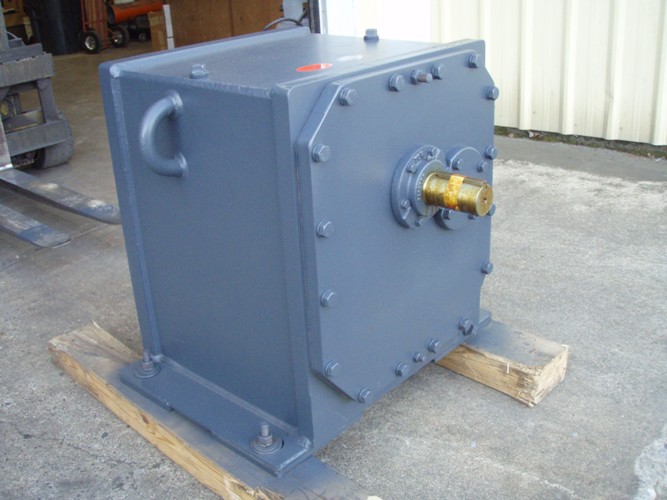

Click on images for larger view.
