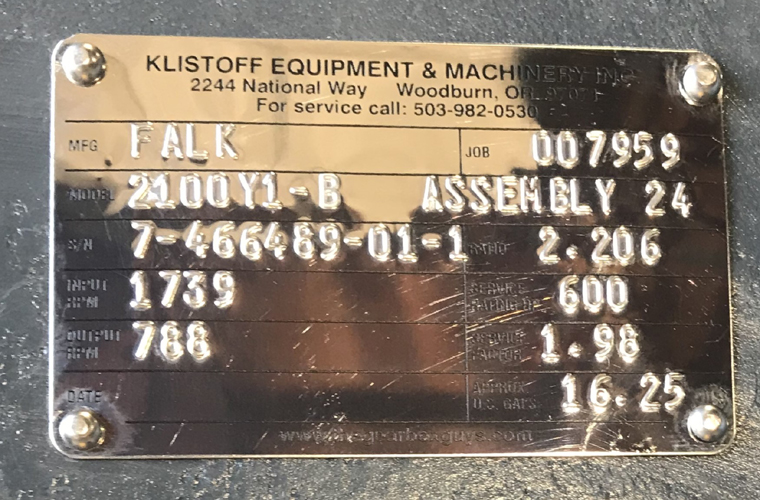

| Nameplate Data | |||||
|---|---|---|---|---|---|
| Manufacturer: | FALK | Our ID No. | 007959 | ||
| Model: | 2100Y1-B | Ratio: | 2.206 | ||
| MO# or S/N | 7-466489-01-1 | Alt. S/N | |||
| IP Speed: | 1739 | HP rating: | 600 | Cat. Rating: | 1188 |
| OP Speed: | 788 | SF / SC | 1.98 | ||
| Date: | Oil Capacity: | 16.25 Approx US GALS | |||
| Additional Catalog Information | |||||
|---|---|---|---|---|---|
| Torque Rating | 94,000 Lb-Inches | High Speed Shaft Dia. | 3.000 | ||
| Weight | 2,000 Lbs Approx. | Low Speed Shaft Dia. | 5.000 | ||
| Assembly | 24 | Centers | 14.250" | Shaft Height | 14.50" |
| H.S. Shaft RPM |
Ratio | Approx. L.S. Shaft RPM |
Mechanical HP Ratings |
Thermal ratings W/O cooling |
|---|---|---|---|---|
| 1750 RPM | 2.206:1 | 780 RPM | 1188 HP | 217 HP |
| 1430 RPM | 640 RPM | 1032 HP | 290 HP | |
| 1170 RPM | 520 RPM | 897 HP | 371 HP | |
| 870 RPM | 390 RPM | 728 HP | 486 HP | |
| 720 RPM | 320 RPM | 637 HP | 586 HP | |
| 580 RPM | 260 RPM | 548 HP | Exceeds Mechanical |
| Condition |
|---|
|

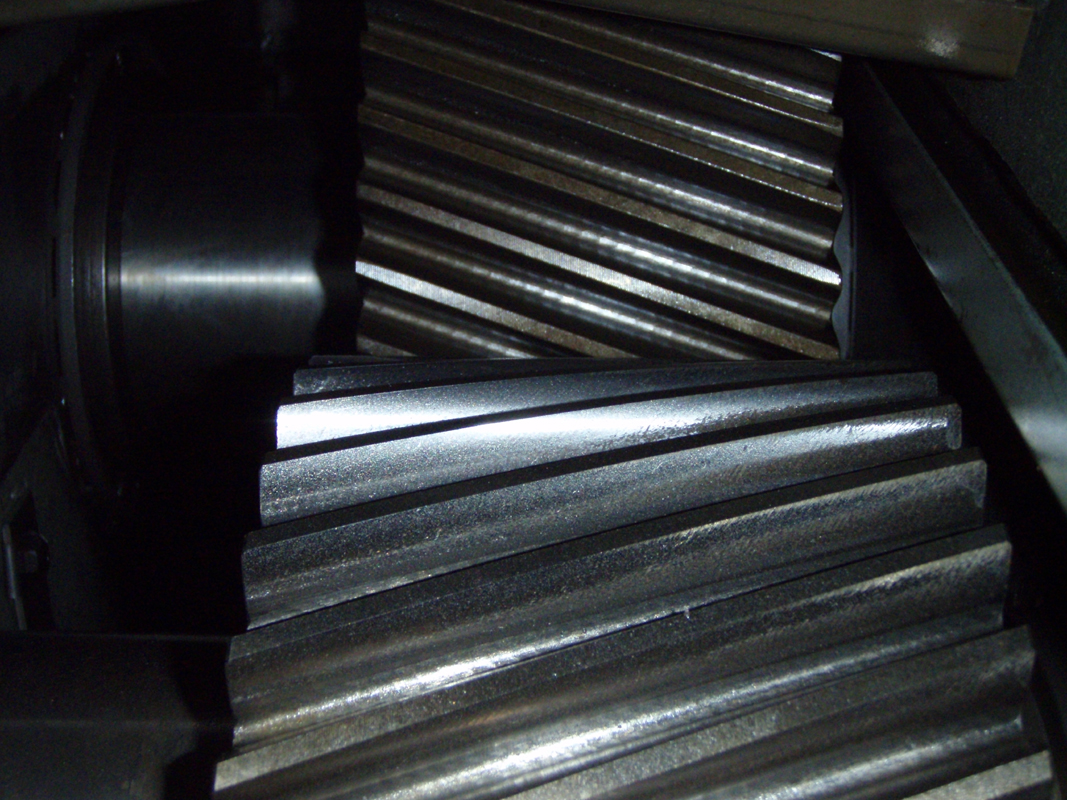

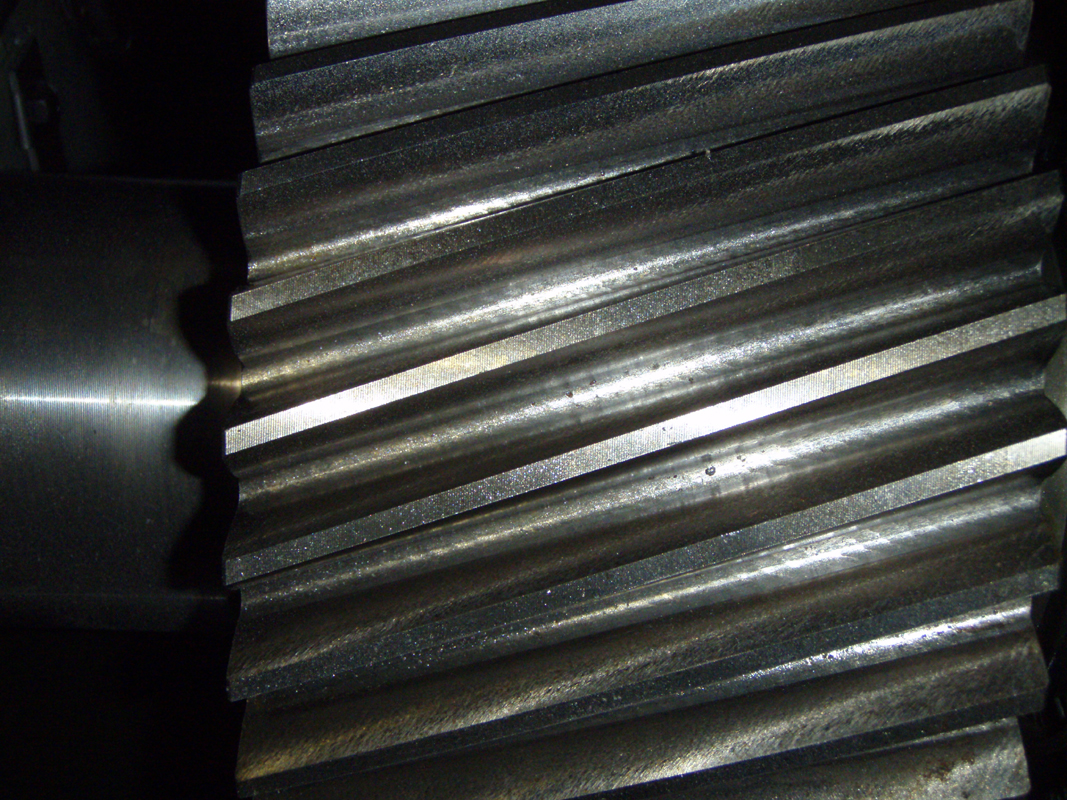

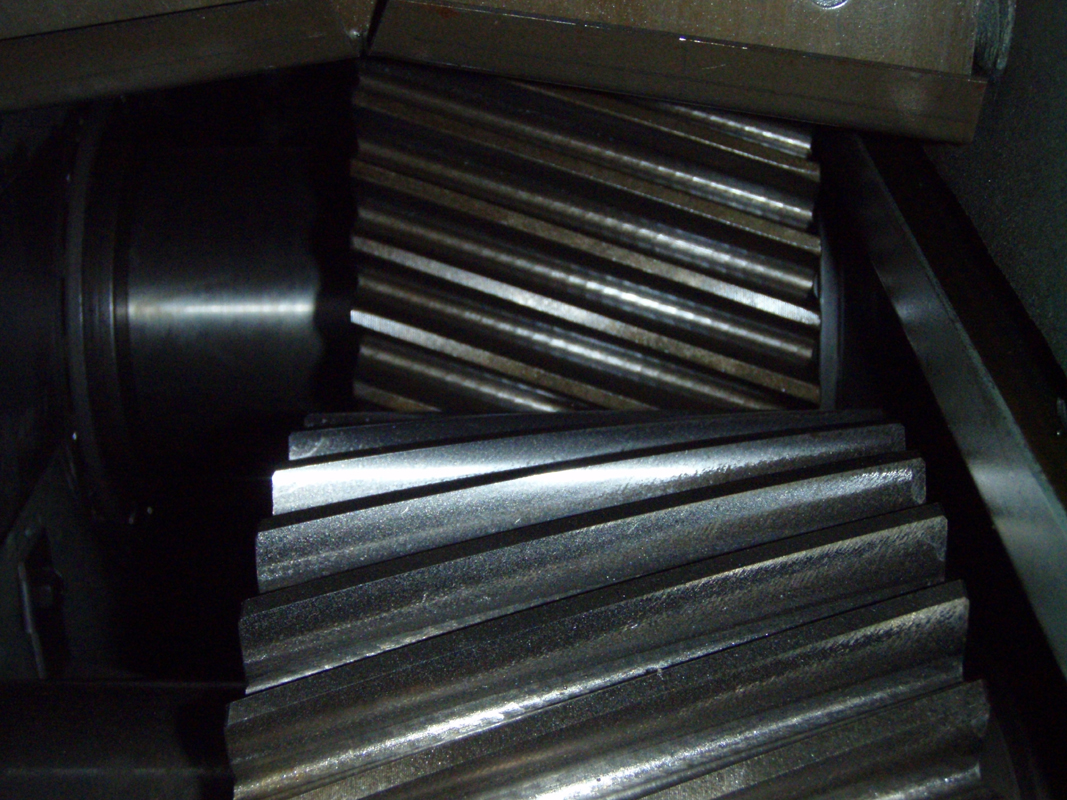

Notes: Gears are very good, depending on use may require external cooling |
| Operate gear drives only at horsepower, speed and ratio shown on nameplate. Before changing any one of these, submit complete nameplate data and new application conditions to the manufacturer for correct oil level, accessories, parts and application approval. Check unit for thermal capacity. Check unit for over hung load capacity if shaft connections are anything other the direct coupled. |
