- Speed Reducer Data Sheet -
HOME
N A M E P L A T E       D A T A
Manufacturer:      FALK Our ID No.      007960
Model:      2140YBXU3A Ratio:      36.12
MO# or S/N      8-100101-01 Alt. S/N
IP Speed      900 RPM HP rating      100 HP Cat. Rating
OP Speed:      25 RPM SF / SC      1.8 SF
Date       Oil Capacity
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating       Lb-Inches Shaft Diameters High Speed:  2.250
Low Speed:  7.250
Weight      9,000 Lbs Approx. Assembly
Notes:
Condition:
USED


Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

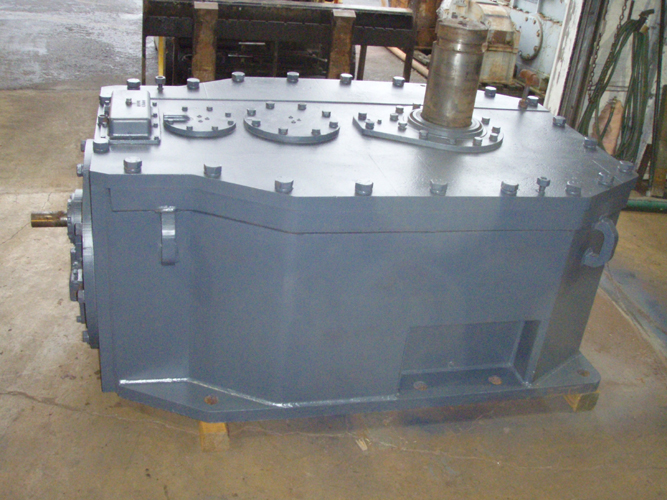

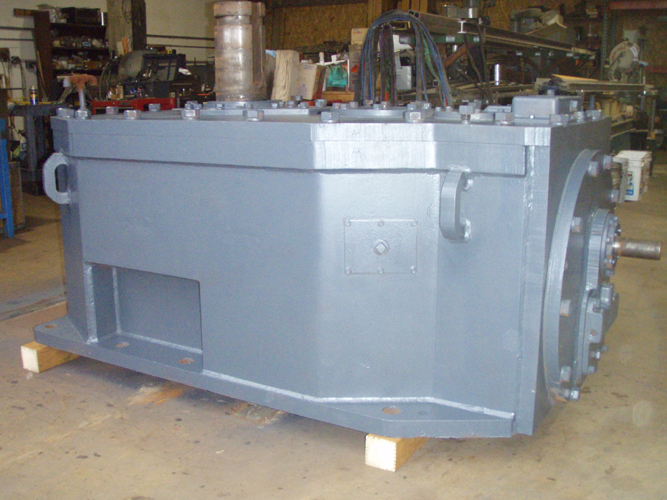

Click on images for larger view.
