Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -
HOME
N A M E P L A T E       D A T A
Manufacturer:      FALK Our ID No.      007967
Model:      2060Y1-LR
 		Ratio:      3.381
MO# or S/N      9-066088 Alt. S/N
IP Speed      1750 HP rating      155 Cat. Rating
OP Speed:      517.6 SF / SC      1.96
Date      06/90 Oil Capacity      4.3
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating      37,000 Lb-Inches Shaft Diameters High Speed:  2.000
Low Speed:  3.000
Weight      600 Lbs Approx. Assembly      ASSEMBLY 19
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings		 Thermal
Ratings
W/O Cooling
1750 RPM
3.381:1

520 RPM
304 HP
142 HP
1430 RPM
420 RPM
257 HP
150 HP
1170 RPM
350 RPM
217 HP
153 HP
870 RPM
260 RPM
168 HP
160 HP
720 RPM
210 RPM
210 HP
Thermal rating exceeds mechanical rating
580 RPM
175 RPM
118 HP
Notes:
Condition: Used


Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

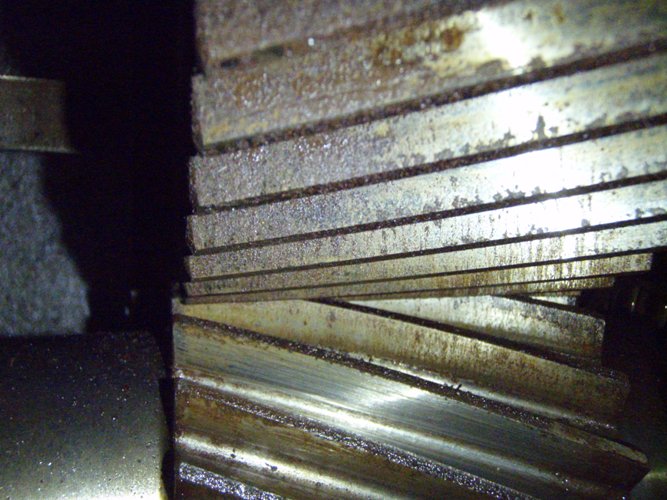

Click on images for larger view.
