- Speed Reducer Data Sheet -
HOME
N A M E P L A T E       D A T A
Manufacturer:      FALK Our ID No.      007970
Model:      RK1070F 2A
Ratio:      17.33
MO# or S/N      95-088424-01 Alt. S/N
IP Speed       HP rating       Cat. Rating
OP Speed:       SF / SC
Date       Oil Capacity      6.5
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating      409,000 Lb-Inches Shaft Diameters High Speed:  2.1250
Low Speed:  3.250
Weight      500 Lbs Approx. Assembly
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
17.33 :1

100 RPM
65.6 HP
1430 RPM
84 RPM
54.0 HP
1170 RPM
68 RPM
44.5 HP
870 RPM
50 RPM
33.4 HP
720 RPM
42 RPM
27.8 HP
580 RPM
34 RPM
22.6 HP
Notes:
Condition:Used


Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

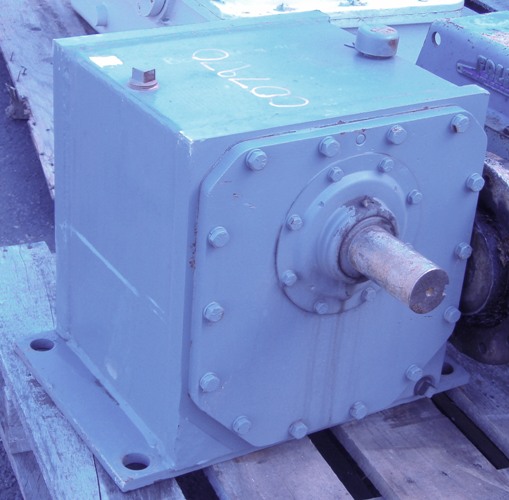

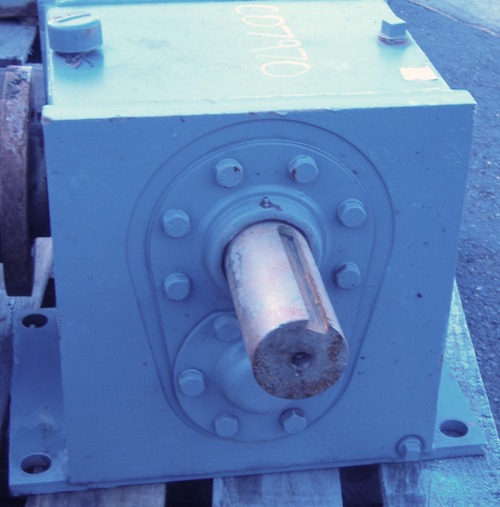

Click on images for larger view.
