N A M E P L A T E       D A T A

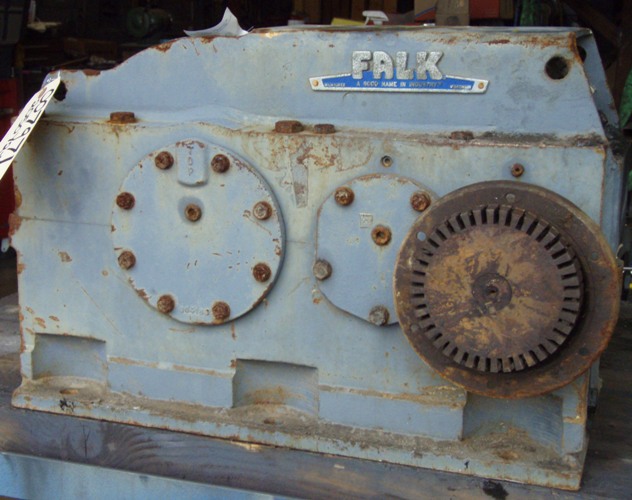

Manufacturer:      FALK Our ID No.      007971
Model:      2050Y2-B
 		Ratio:      8.286
MO# or S/N      7-765727-01-1 Alt. S/N
IP Speed      1750 HP rating      20 Cat. Rating
OP Speed:      211.2 SF / SC      3.39
Date       Oil Capacity      1-3/4
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating      22,400 Lb-Inches Shaft Diameters High Speed:  1.250
Low Speed:  2.750
Weight      500 Lbs Approx. Assembly      18
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
8.286:1

190 RPM
67.8 HP
1430 RPM
155 RPM
57.1 HP
1170 RPM
125 RPM
48.1 HP
870 RPM
95 RPM
37.2 HP
720 RPM
77 RPM
30.3 HP
580 RPM
62 RPM
24.8 HP
Notes:
Condition: Used
